PDVF-Lite Thick Sheet Vacuum Forming Machine(lightweight version)
Automotive parts (interior and exterior parts,new energy battery cover,car feet,tumover tray),medical equipment shell,chassis sel,adverising,bags, refrgerator liner,door panels,bathtubs and other plastic absorbing products.
Automotive parts (interior and exterior parts,new energy battery cover,car feet,tumover tray),medical equipment shell,chassis sel,adverising,bags, refrgerator liner,door panels,bathtubs and other plastic absorbing products.
Product Details
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L* W * H) |
Total power (Actual use30%-70%） |
Dimension (L*W*H) |
Production Speed |
|
PDVF-Lite0806 |
800*600*300mm |
25kw |
2000*2200*1800mm(L* W * H) |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-Lite1008 |
1000*800*500mm |
35kw |
2200*2600*1800mm(L* W * H) |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-Lite1212 |
1200*1200*500mm |
45kw |
2400*3400*1800mm(L* W * H) |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-Lite1515 |
2500*1500*500mm |
70kw |
3700*4000*1800mm(L* W * H) |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-Lite2412 |
2400*1200*500mm |
100kw |
3600*3400*1800mm(L* W * H) |
2～7 minutes/Pc (2~6 mm) |

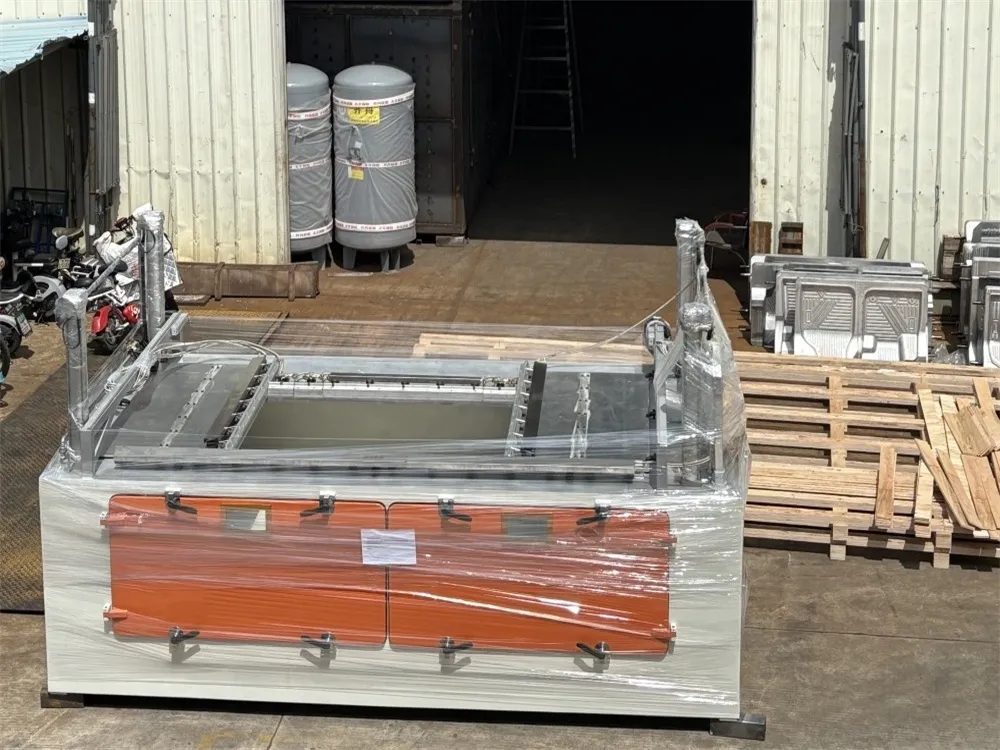

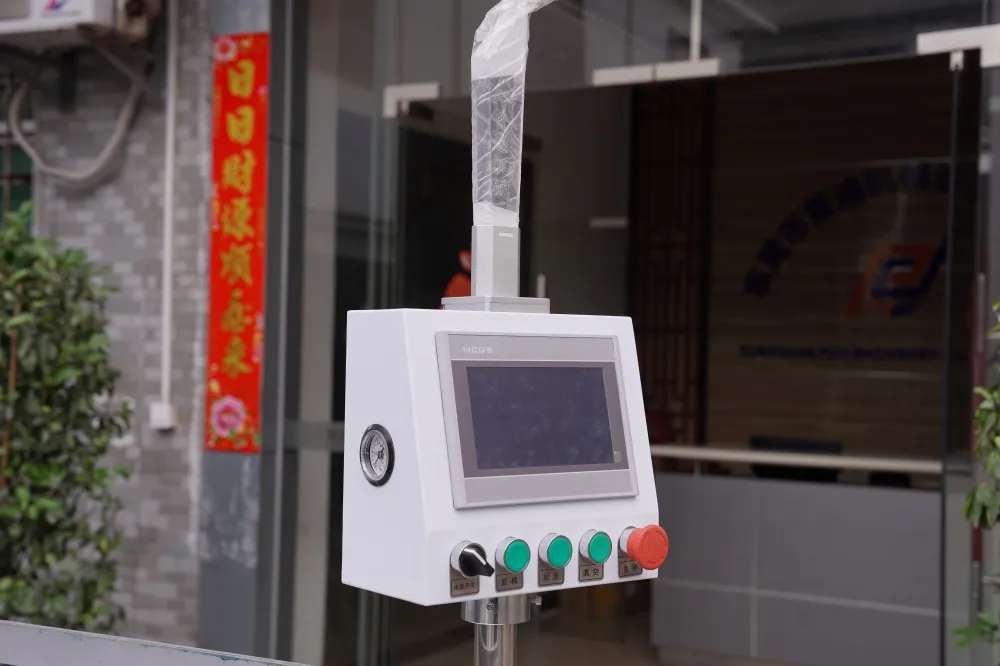

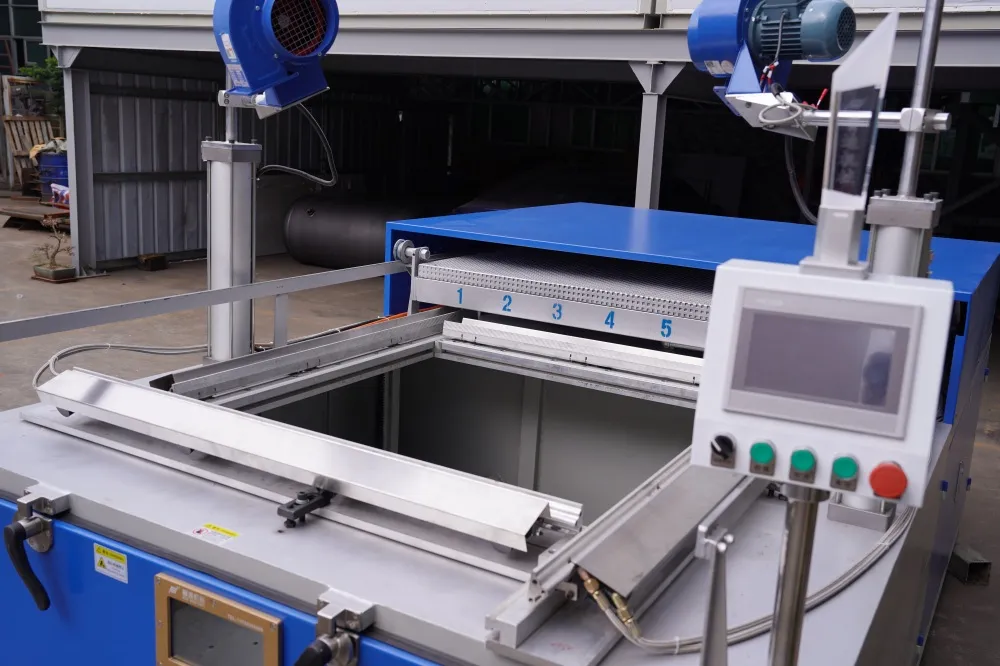

▎MACHINE DETAIL IMAGES
 |
 |
 |
▎FUNCTIONAL FEATURES
|
Aplicable Materals |
ABS, PS, PE, PC, PP, PVC, PET, PMMA composite materials, alloy materials, and other thermoforming sheets. |
|
Molding Thickness |
1-15mm |
|
Drving method |
Servo Motor |
|
Heating method |
Stype infrared heating tube |
|
Computer operating system window |
Universal Wellhead Plate (or Integrated Fixture) |
|
Coolngsystem |
Powerfulfan and spray |
|
Mold release system |
Multi-stage mold release system |
|
Blowing Bubble Ant-Sag |
Automatic infrared sensing |
|
Data storage function |
200 sets of data can be stored |
|
Vacuum system |
Two-stage vacuum system |
|
Safety system |
Pressureframe anti-dropand grating protection system |
|
Operation |
Manual loadingandunloading |
|
Other Functions |
Mold core extraction,mold cavity heat exhaust device |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |

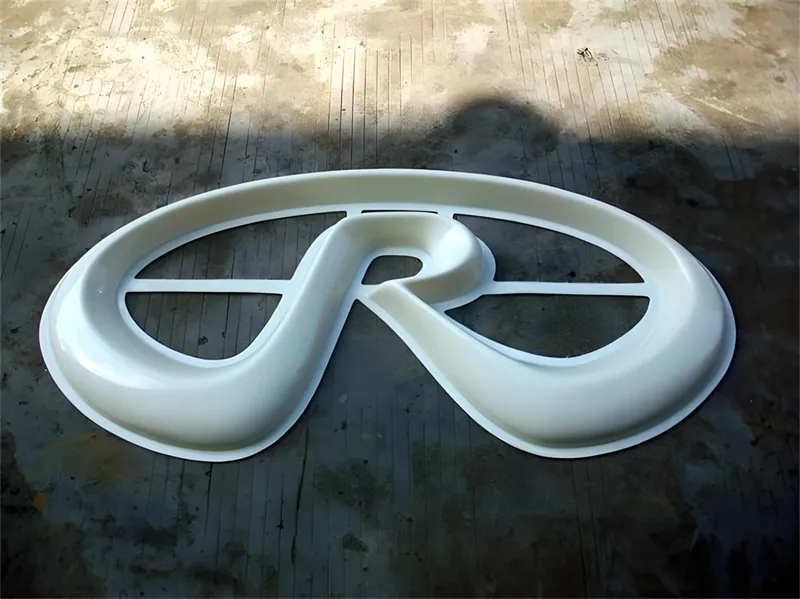

▎AVAILABLE PRODUCTS
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
▎APPLICATION AREAS
Automotive Industry: Automotive components: Manufactured from thick-walled ABS, PC or PP materials for interior trim panels, vehicle bumpers, roof boxes, instrument panels, or TPE/TPO automotive floor mats.

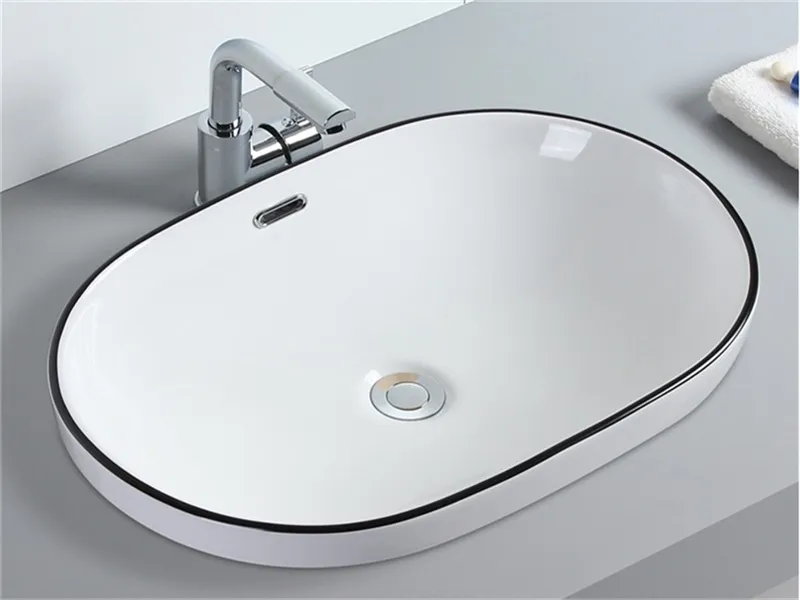

Home Appliances and Sanitary Ware Industry: Refrigerator Liners, Bathtub and Shower Bases, Air Conditioner and Washing Machine Housings.
Industrial Equipment Housings: Machinery Equipment Shells, Medical Equipment Housings, Agricultural Machinery Covers, Wall Panels.

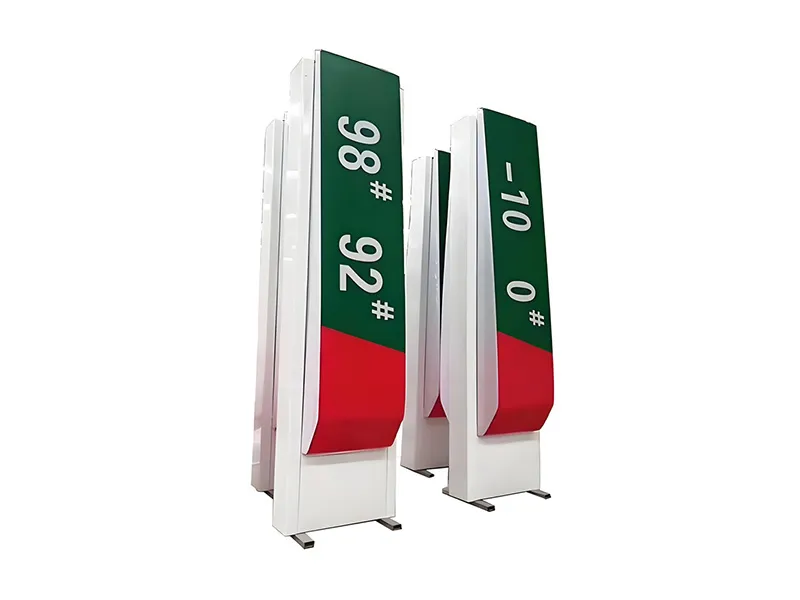

Advertising and Display Industry: Lightbox Panels,Display Rack Shells,3D Advertising Letter Shells
Vessels and Hulls: Moulding hulls, roof boxes and marine fittings using thick PE or PC materials.
Leisure and Speciality Products: Manufacturing golf cart canopies, stargazing domes, signage, police shields and even bathtub shells from thick-gauge sheets.
 |
 |
 |
 |
 |
 |
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customized service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
 |
 |
 |
 |
 |
 |
