PDVF-DS Double-station Thick Sheet Vacuum Forming Machine
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
Product Details
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L*W*H) |
Total power |
Dimension (L*W*H) |
Production Speed |
|
PDVF-DS0806 |
800*600*300mm |
35kw (Actual use30%-70%） |
2000*3800*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DS1008 |
1000*800*500mm |
45kw (Actual use30%-70%） |
2200*4400*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DS1212 |
1200*1200*500mm |
50kw (Actual use30%-70%） |
2400*5600*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DS1515 |
1500*1500*500mm |
80kw (Actual use30%-70%） |
2700*5500*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DS2412 |
2400*1200*500mm |
110kw (Actual use30%-70%） |
3600*5600*3500mm |
2～7 minutes/Pc (2~6 mm) |

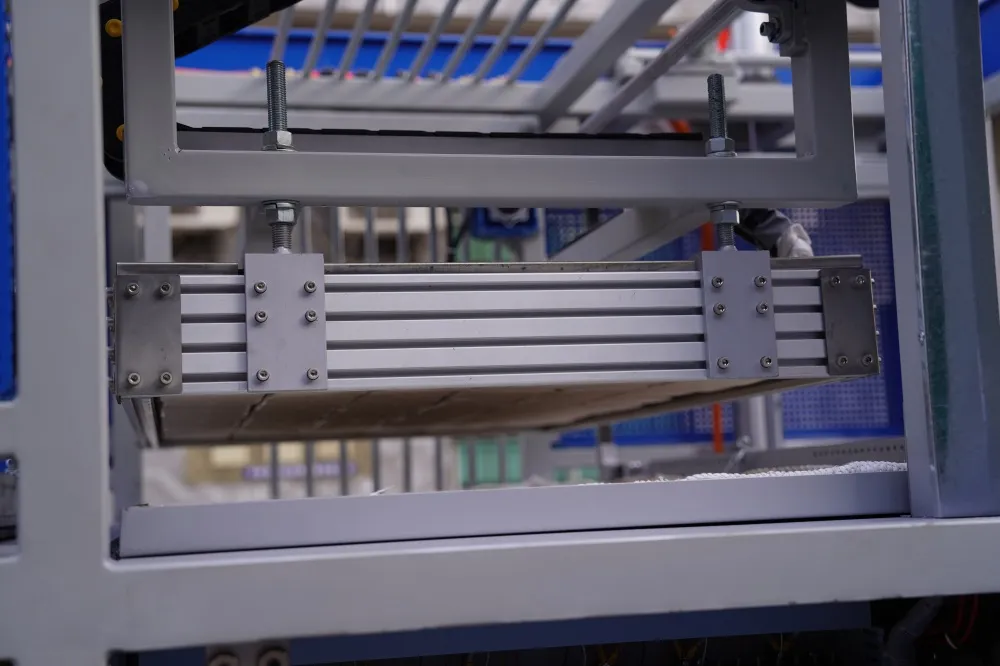

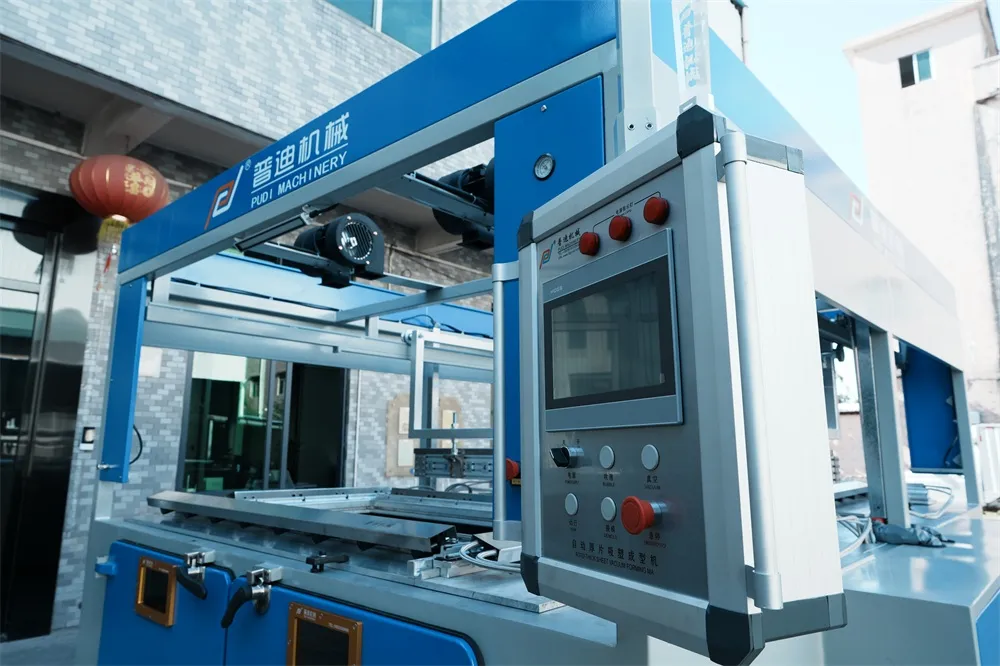

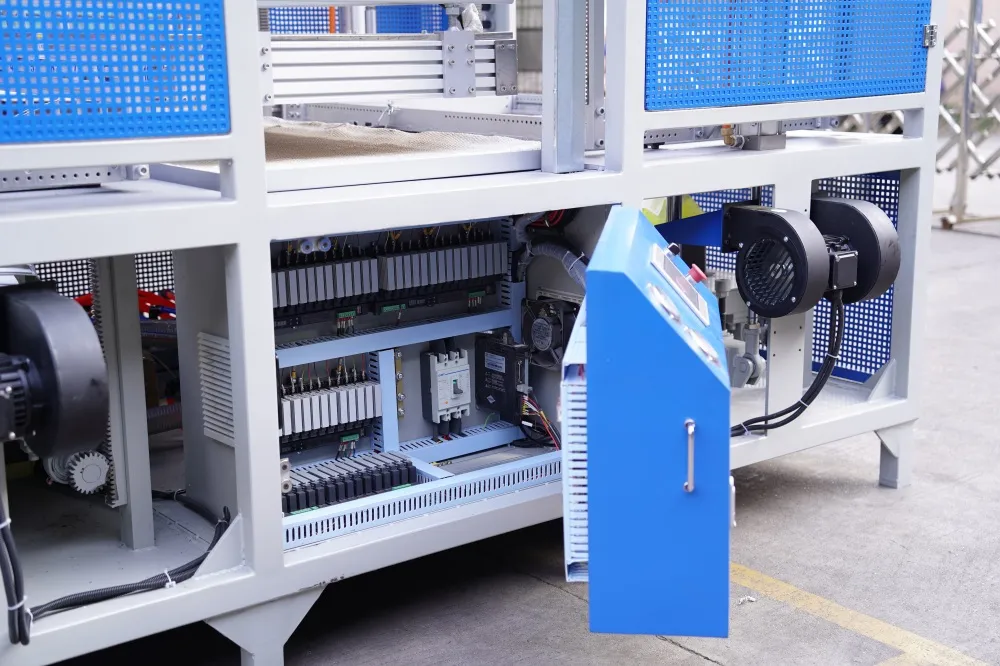

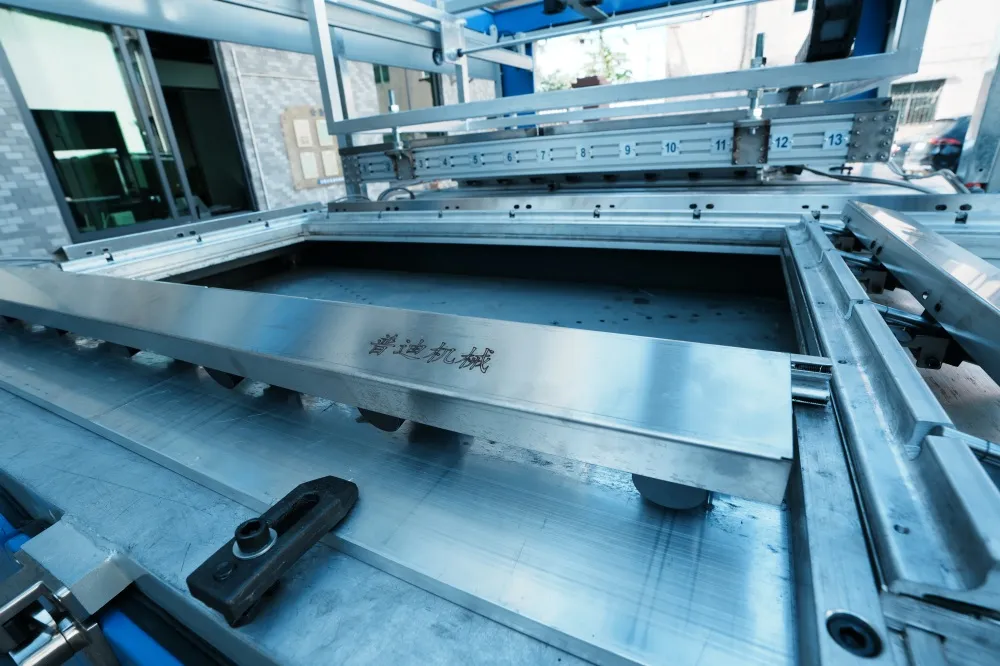

▎MACHINE DETAIL IMAGES
 |
 |
 |
 |
▎FUNCTIONAL FEATURES
|
Applicable Materials |
ABS, PS, PE, PC, PP, PVC, PET, PMMA composite materials, alloy materials, and other vacuum forming sheets. |
|
Molding Thickness |
1-10mm |
|
Driving method |
Servo Motor |
|
computer operating system window |
Manual adjustment |
|
Cooling system |
Powerfulfan |
|
Mold release system |
Dual-station simultaneous forming system with alternating production cycles |
|
Vacuum system |
Two-stage vacuum system |
|
Data storage function |
200 sets of data can be stored |
|
Safety system |
grating protection system |
|
Operation |
Manual lading andunloading |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |

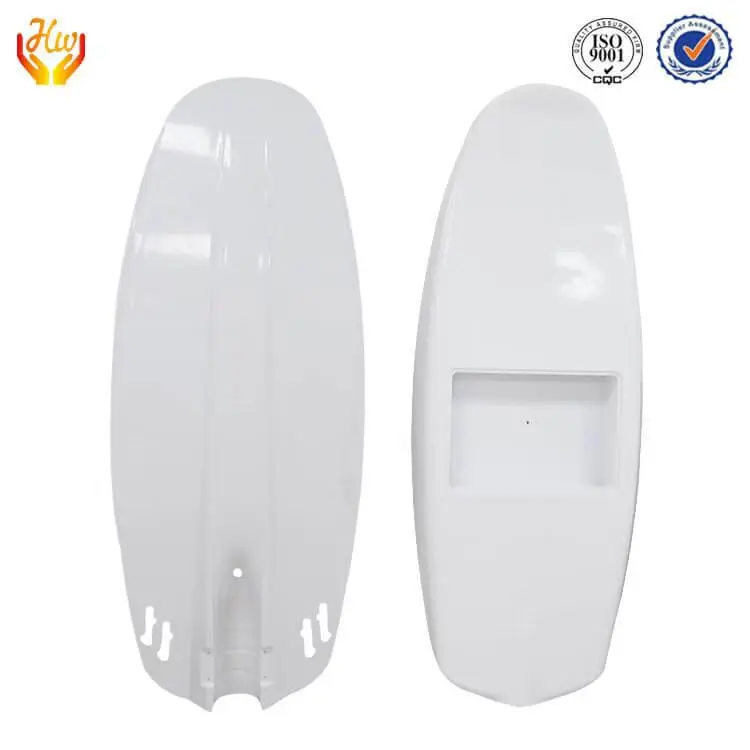

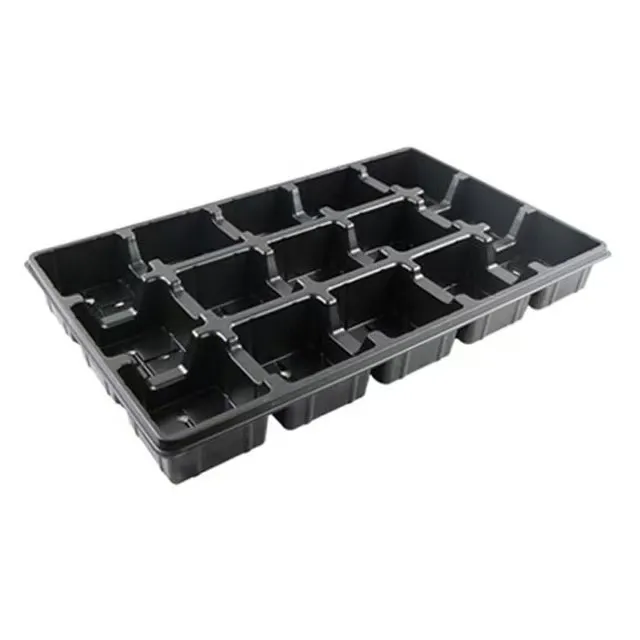

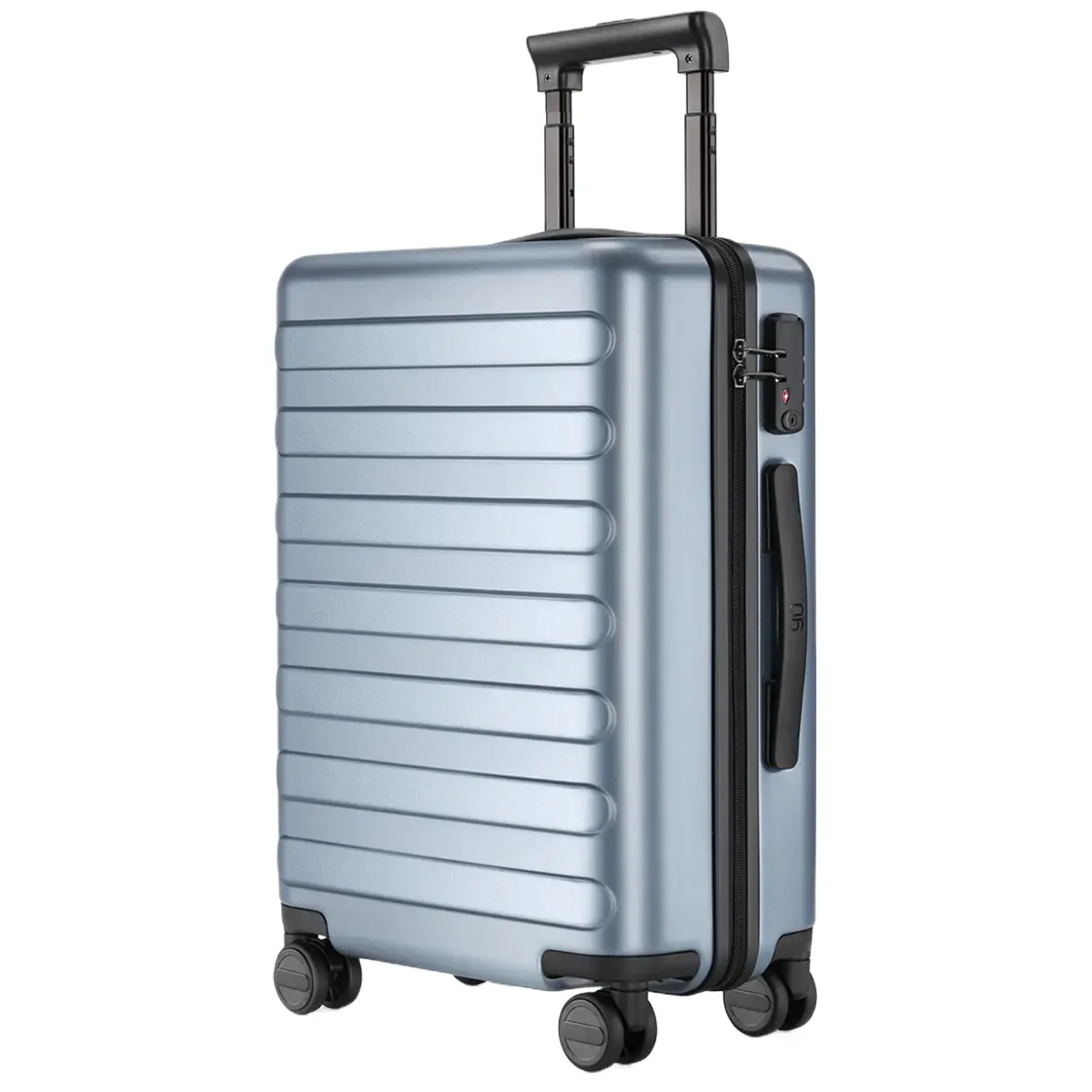

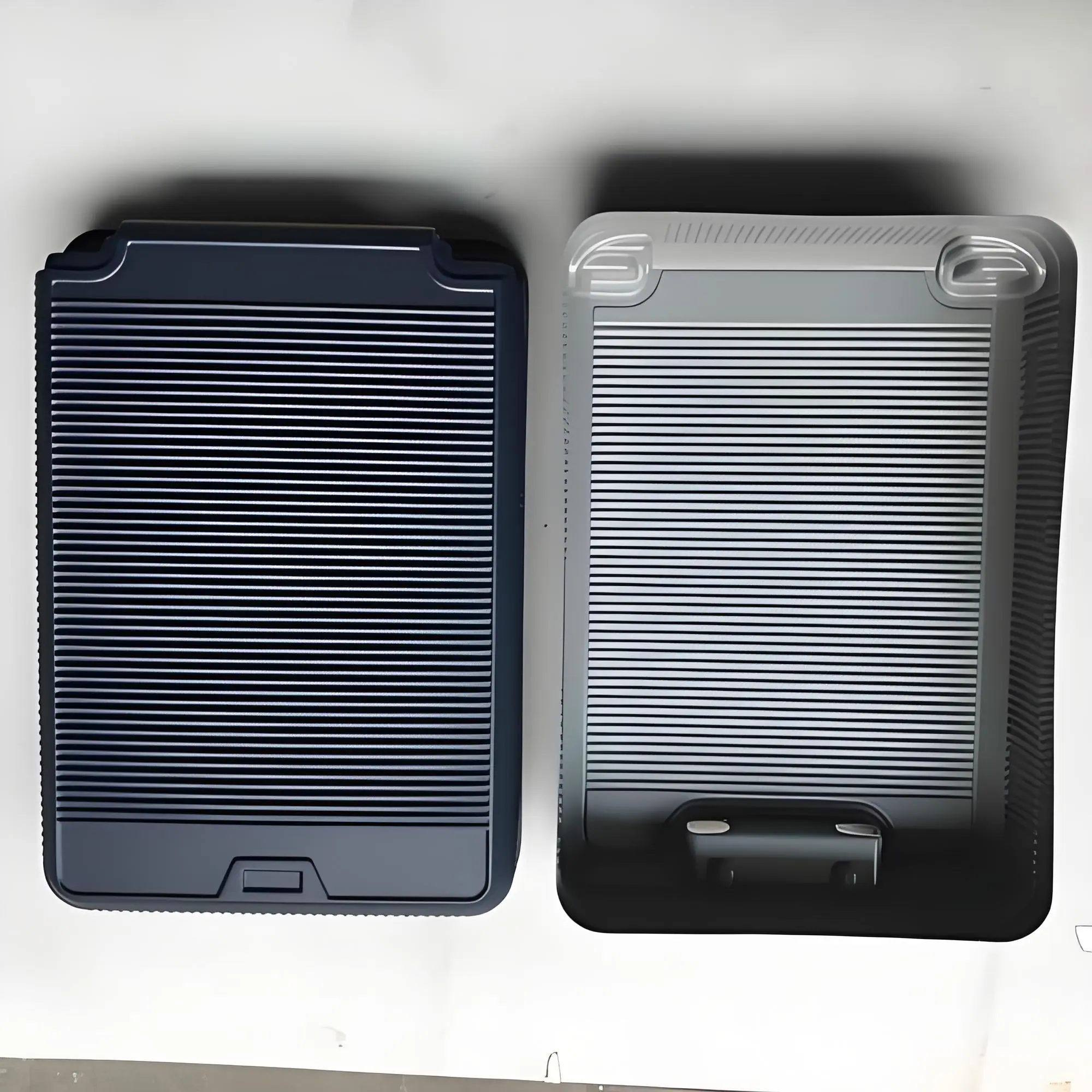

▎AVAILABLE PRODUCTS

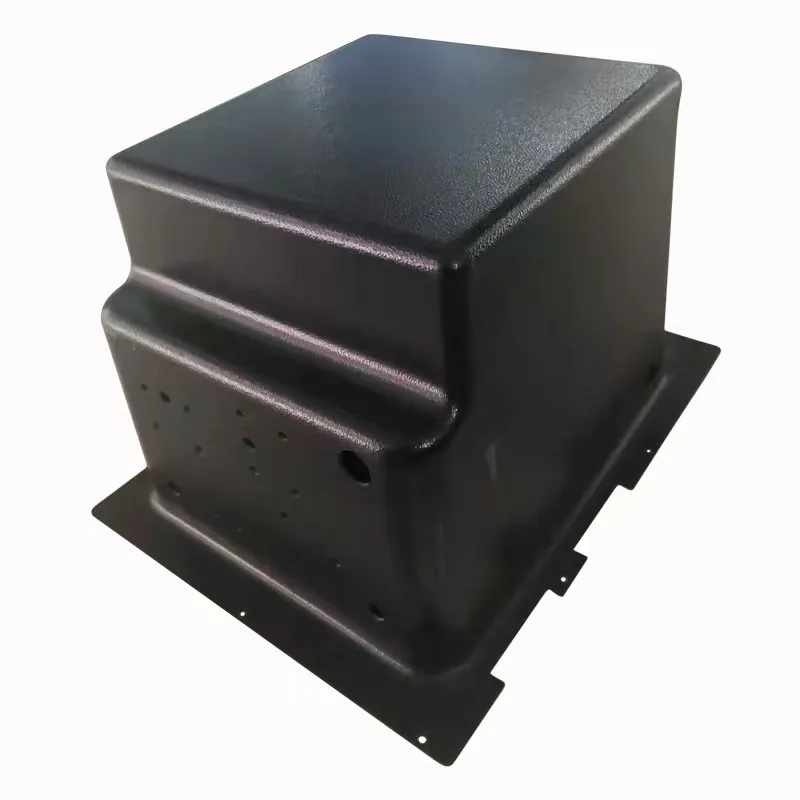

Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
▎APPLICATION AREAS
Automotive Industry: Automotive components: Manufactured from thick-walled ABS, PC or PP materials for interior trim panels, vehicle bumpers, roof boxes, instrument panels, or TPE/TPO automotive floor mats.
Home Appliances and Sanitary Ware Industry: Refrigerator Liners, Bathtub and Shower Bases, Air Conditioner and Washing Machine Housings.
Industrial Equipment Housings: Machinery Equipment Shells, Medical Equipment Housings, Agricultural Machinery Covers, Wall Panels.

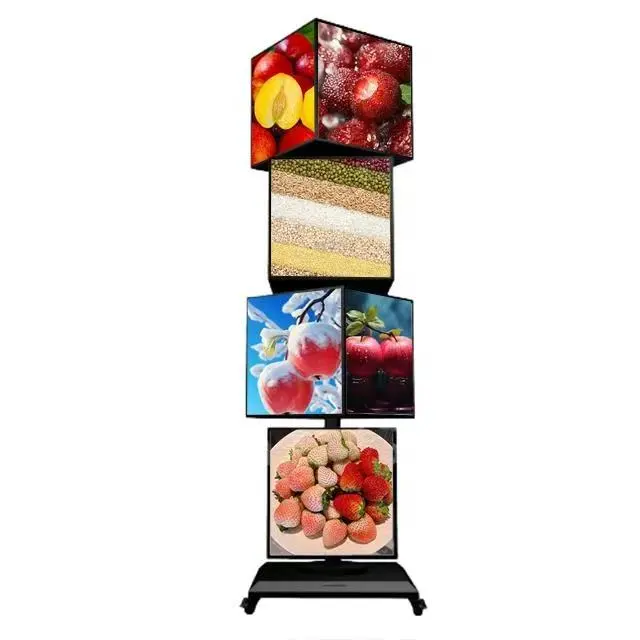

Advertising and Display Industry: Lightbox Panels,Display Rack Shells,3D Advertising Letter Shells
Vessels and Hulls: Moulding hulls, roof boxes and marine fittings using thick PE or PC materials.
Leisure and Speciality Products: Manufacturing golf cart canopies, stargazing domes, signage, police shields and even bathtub shells from thick-gauge sheets.
 |
 |
 |
 |
 |
 |
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
 |
 |
 |
 |
 |
 |
