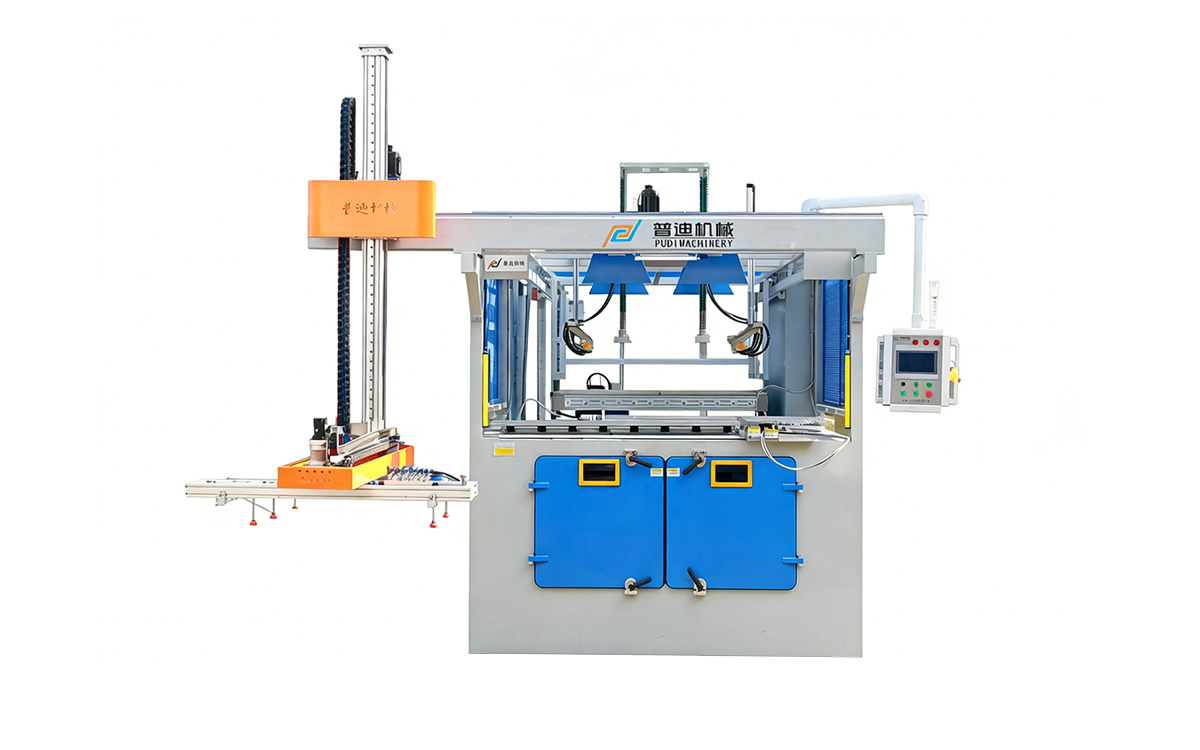

PDVF-DP Automatic Dual-purpose Vacuum Forming Machine
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
Next: No more data
Product Details
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L*W*H) |
Total power |
Dimension (L*W*H) |
Production Speed |
|
PDVF-DP1010 |
1000*1000*300mm |
150kw (Actual use30%-70%） |
4000*2200*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP1510 |
1500*1000*300mm |
180kw (Actual use30%-70%） |
5500*2200*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP2015 |
2000*1500*300mm |
220kw (Actual use30%-70%） |
8000*2700*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP3015 |
3000*1500*500mm |
300kw (Actual use30%-70%） |
11000*2700*3500mm |
2～7 minutes/Pc (2~6 mm) |

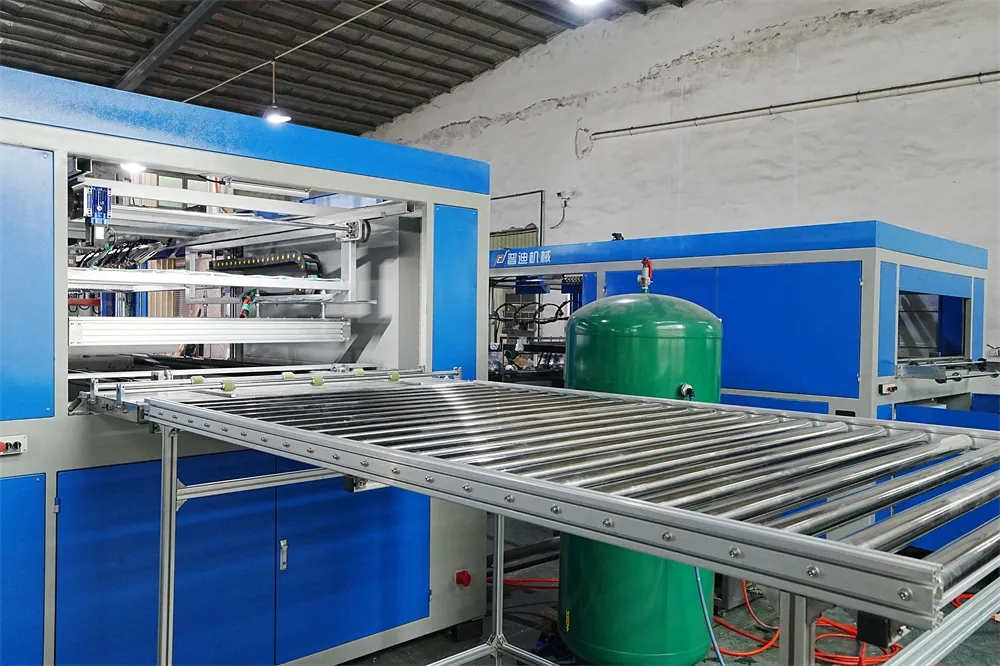

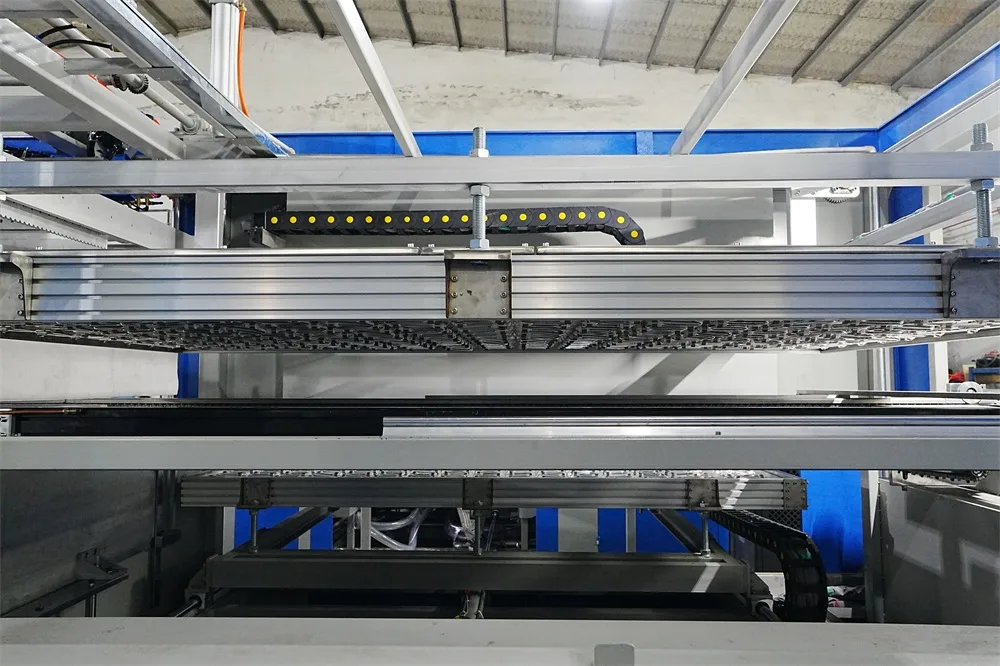

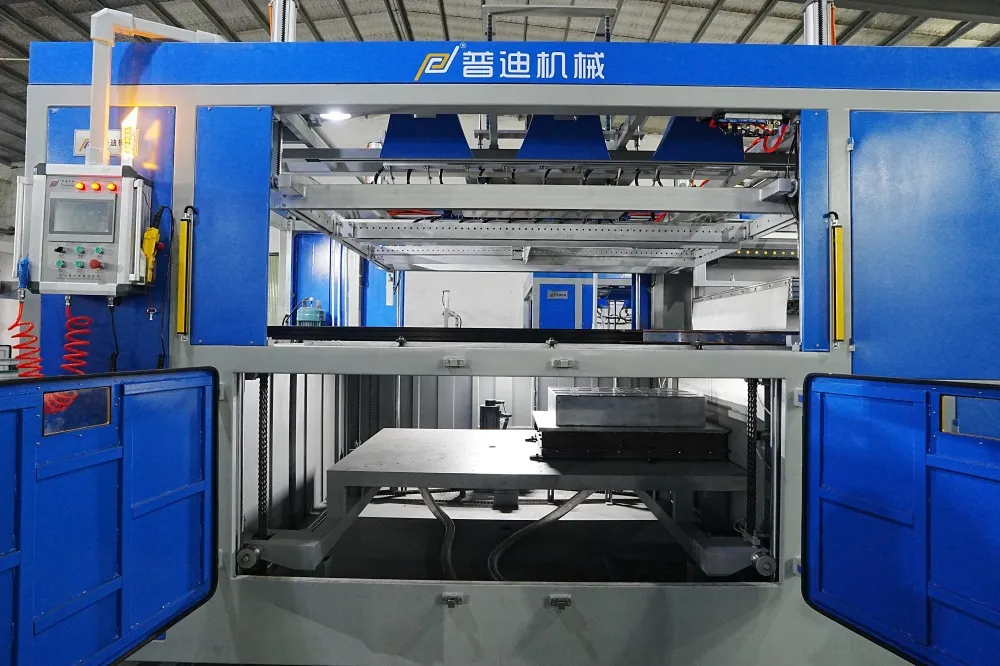

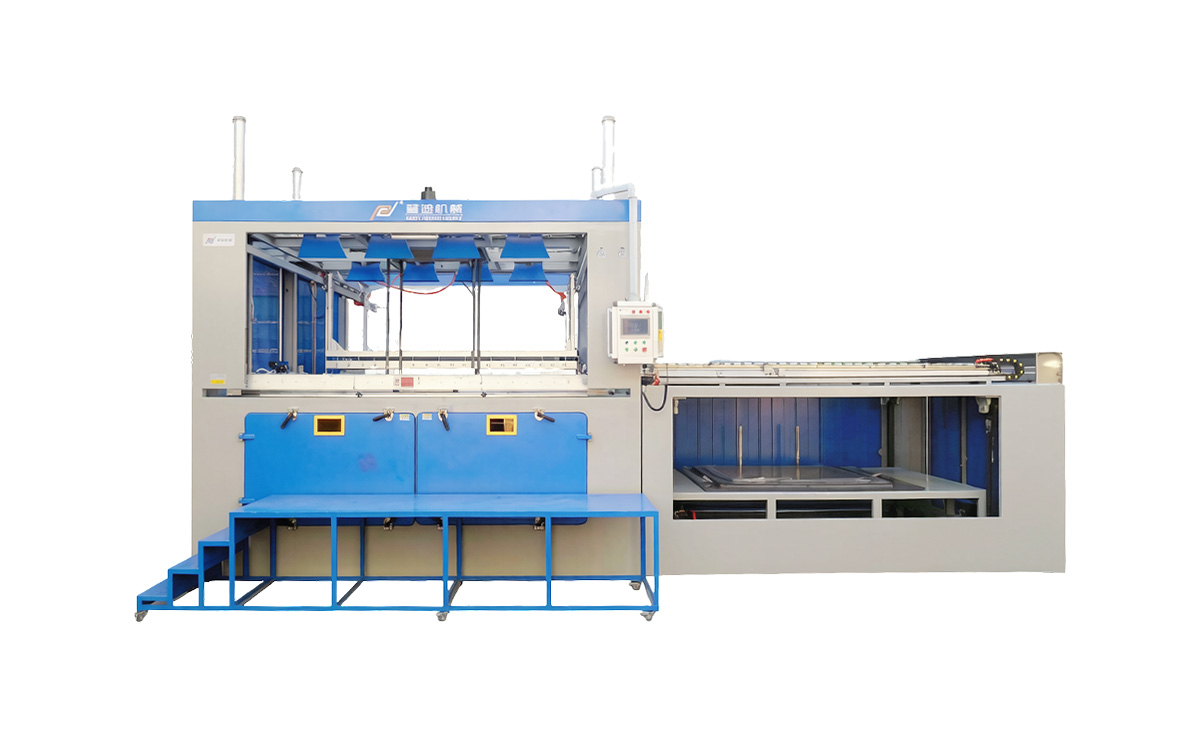

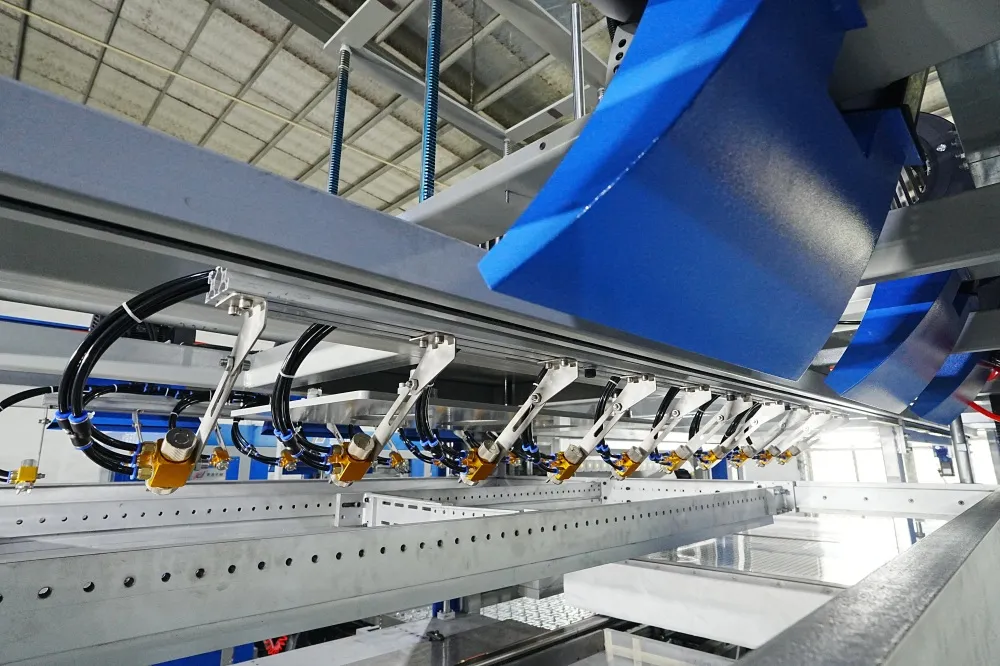

▎MACHINE DETAIL IMAGES
 |
 |
 |
 |
▎FUNCTIONAL FEATURES
|
Dual urpose process |
Fully automated production on your choice of sheet or coil |
|
Driving method |
Servo Motor |
|
Heating method |
Stype infrared heating tube |
|
Cooling system |
Powerfulfan and spray |
|
Mold release system |
lMulti-stage mold release system |
|
Blowing Bubble Ant-Sag |
Automaic infared sensing |
|
Data storage function |
200 sets of data can be stored |
|
Vacuum system |
Two-stage vacuum system |
|
Safety system |
Pressureframe anti-dropand grating protection system |
|
Operation |
Automati loading and unloading |
|
Other Functions |
Mold core extraction,mold cavity heat exhaust device |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |
▎AVAILABLE PRODUCTS
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
▎APPLICATION AREAS

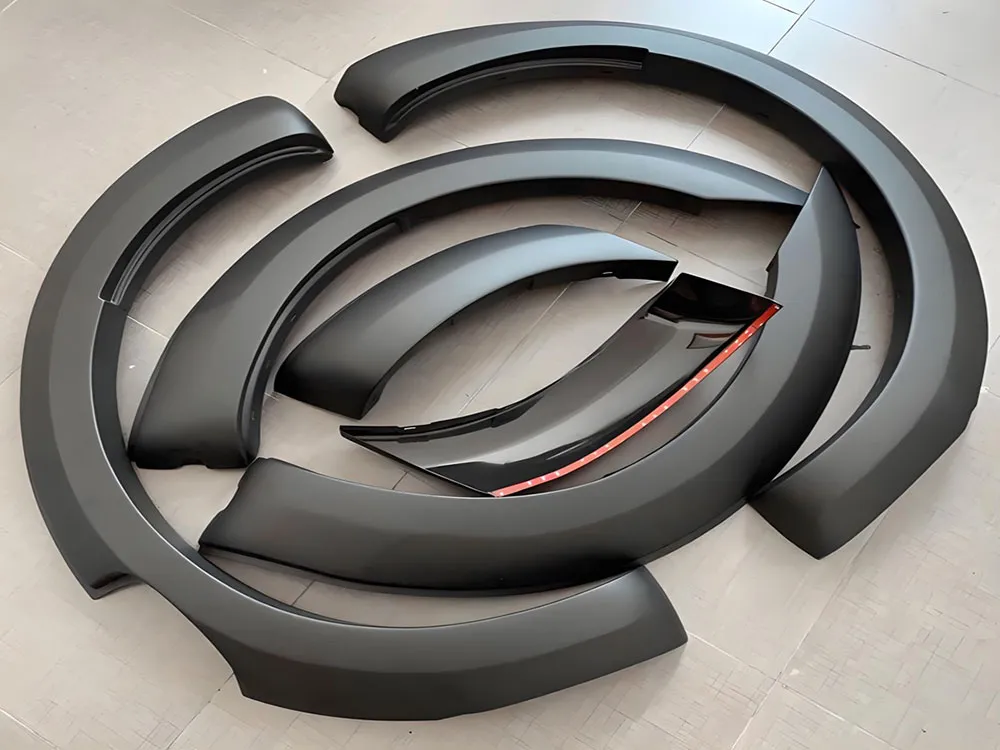

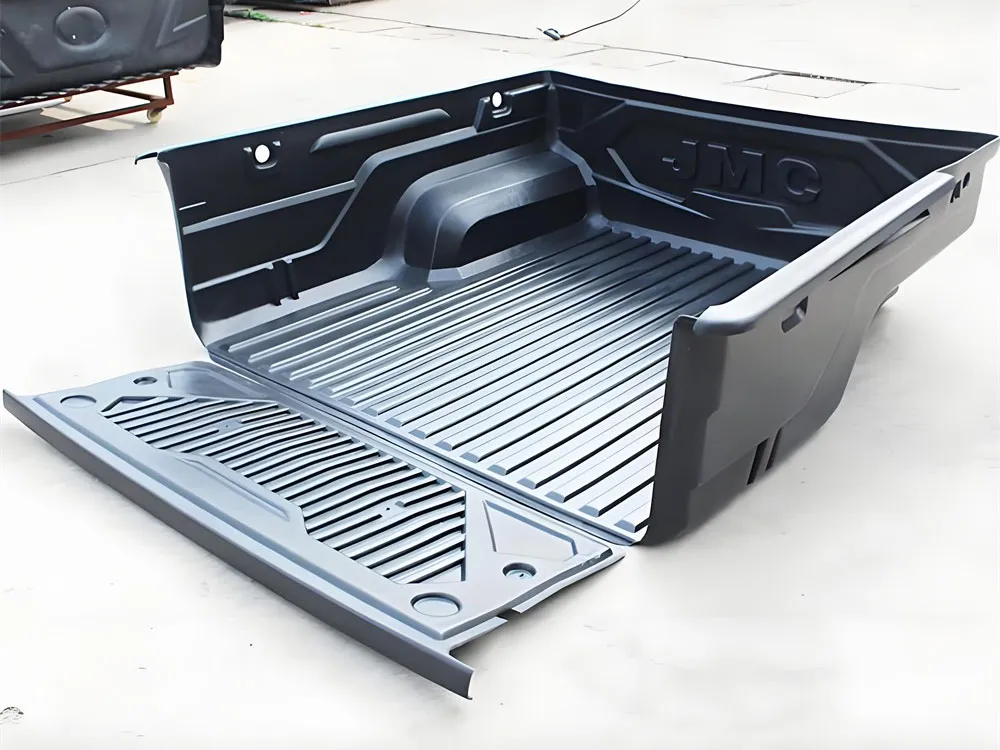

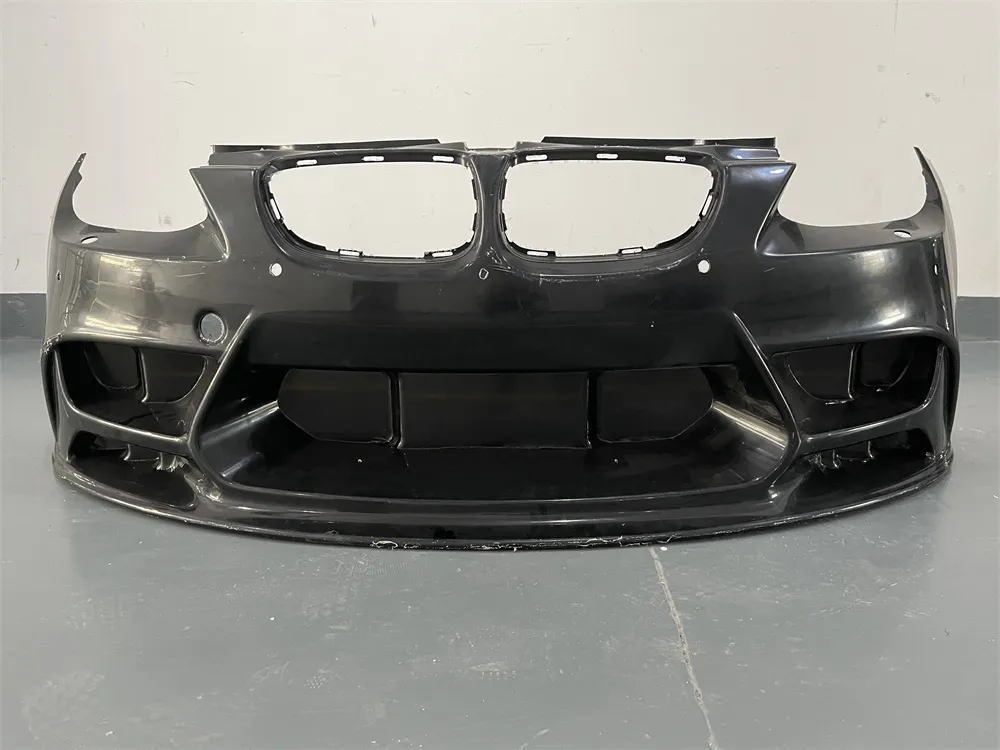

Automotive Industry: Automotive components: Manufactured from thick-walled ABS, PC or PP materials for interior trim panels, vehicle bumpers, roof boxes, instrument panels, or TPE/TPO automotive floor mats.
Home Appliances and Sanitary Ware Industry: Refrigerator Liners, Bathtub and Shower Bases, Air Conditioner and Washing Machine Housings.
Industrial Equipment Housings: Machinery Equipment Shells, Medical Equipment Housings, Agricultural Machinery Covers, Wall Panels.
Advertising and Display Industry: Lightbox Panels,Display Rack Shells,3D Advertising Letter Shells

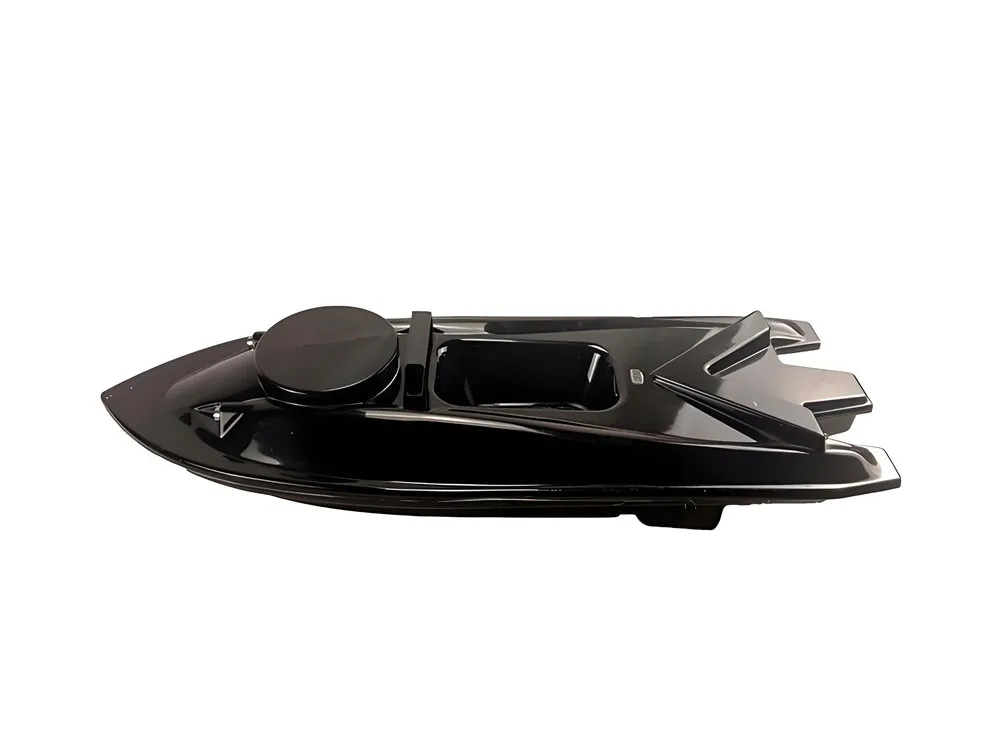

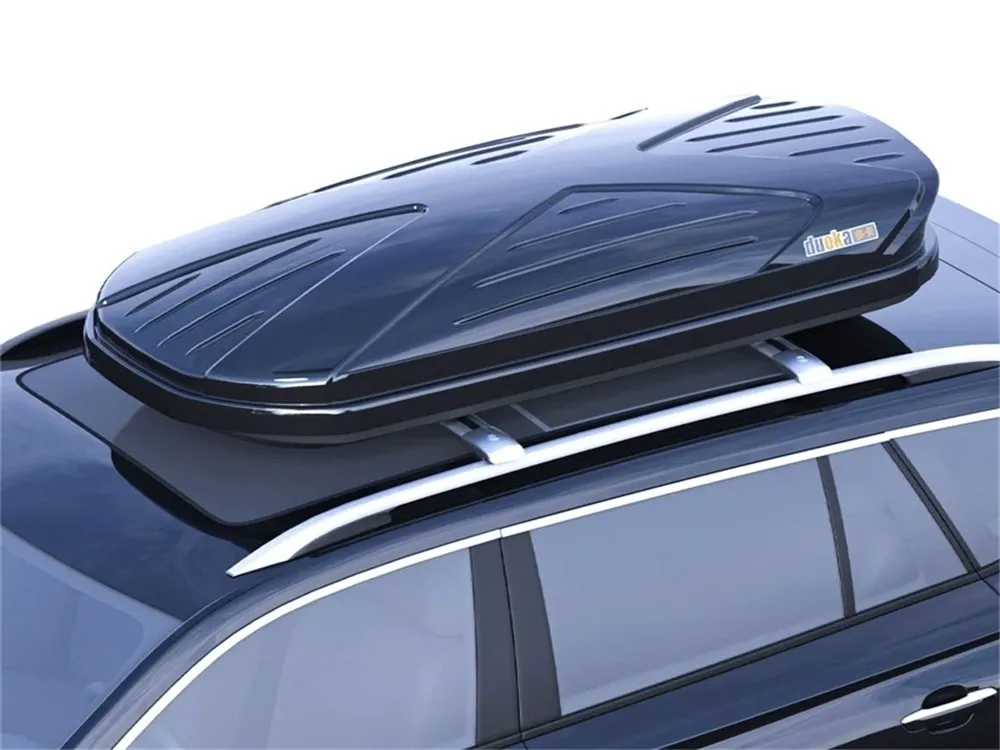

Vessels and Hulls: Moulding hulls, roof boxes and marine fittings using thick PE or PC materials.

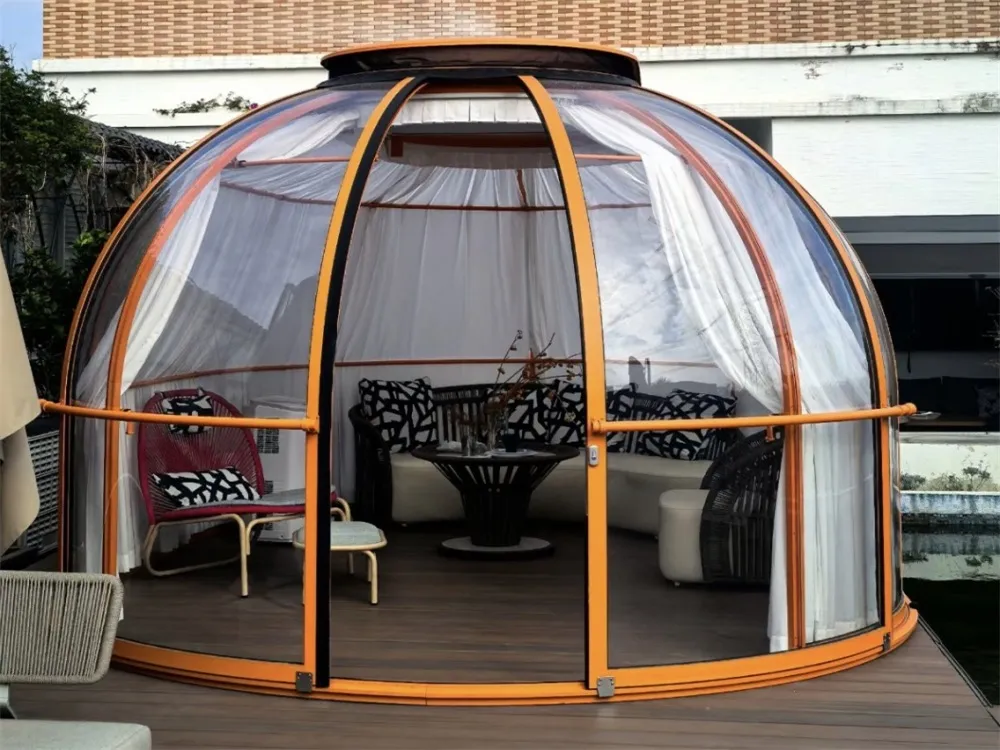

Leisure and Speciality Products: Manufacturing golf cart canopies, stargazing domes, signage, police shields and even bathtub shells from thick-gauge sheets.
 |
 |
 |
 |
 |
 |
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
 |
 |
 |
 |
 |
 |
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L*W*H) |
Total power |
Dimension (L*W*H) |
Production Speed |
|
PDVF-DP1010 |
1000*1000*300mm |
150kw (Actual use30%-70%） |
4000*2200*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP1510 |
1500*1000*300mm |
180kw (Actual use30%-70%） |
5500*2200*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP2015 |
2000*1500*300mm |
220kw (Actual use30%-70%） |
8000*2700*3500mm |
2～7 minutes/Pc (2~6 mm) |
|
PDVF-DP3015 |
3000*1500*500mm |
300kw (Actual use30%-70%） |
11000*2700*3500mm |
2～7 minutes/Pc (2~6 mm) |
▎MACHINE DETAIL IMAGES
|
|
|
|
▎FUNCTIONAL FEATURES
|
Dual urpose process |
Fully automated production on your choice of sheet or coil |
|
Driving method |
Servo Motor |
|
Heating method |
Stype infrared heating tube |
|
Cooling system |
Powerfulfan and spray |
|
Mold release system |
lMulti-stage mold release system |
|
Blowing Bubble Ant-Sag |
Automaic infared sensing |
|
Data storage function |
200 sets of data can be stored |
|
Vacuum system |
Two-stage vacuum system |
|
Safety system |
Pressureframe anti-dropand grating protection system |
|
Operation |
Automati loading and unloading |
|
Other Functions |
Mold core extraction,mold cavity heat exhaust device |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |
▎AVAILABLE PRODUCTS
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
▎APPLICATION AREAS
Automotive Industry: Automotive components: Manufactured from thick-walled ABS, PC or PP materials for interior trim panels, vehicle bumpers, roof boxes, instrument panels, or TPE/TPO automotive floor mats.
Home Appliances and Sanitary Ware Industry: Refrigerator Liners, Bathtub and Shower Bases, Air Conditioner and Washing Machine Housings.
Industrial Equipment Housings: Machinery Equipment Shells, Medical Equipment Housings, Agricultural Machinery Covers, Wall Panels.
Advertising and Display Industry: Lightbox Panels,Display Rack Shells,3D Advertising Letter Shells
Vessels and Hulls: Moulding hulls, roof boxes and marine fittings using thick PE or PC materials.
Leisure and Speciality Products: Manufacturing golf cart canopies, stargazing domes, signage, police shields and even bathtub shells from thick-gauge sheets.
|
|
|
|
|
|
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
|
|
|
|
|
|
Next: No more data
Related Products

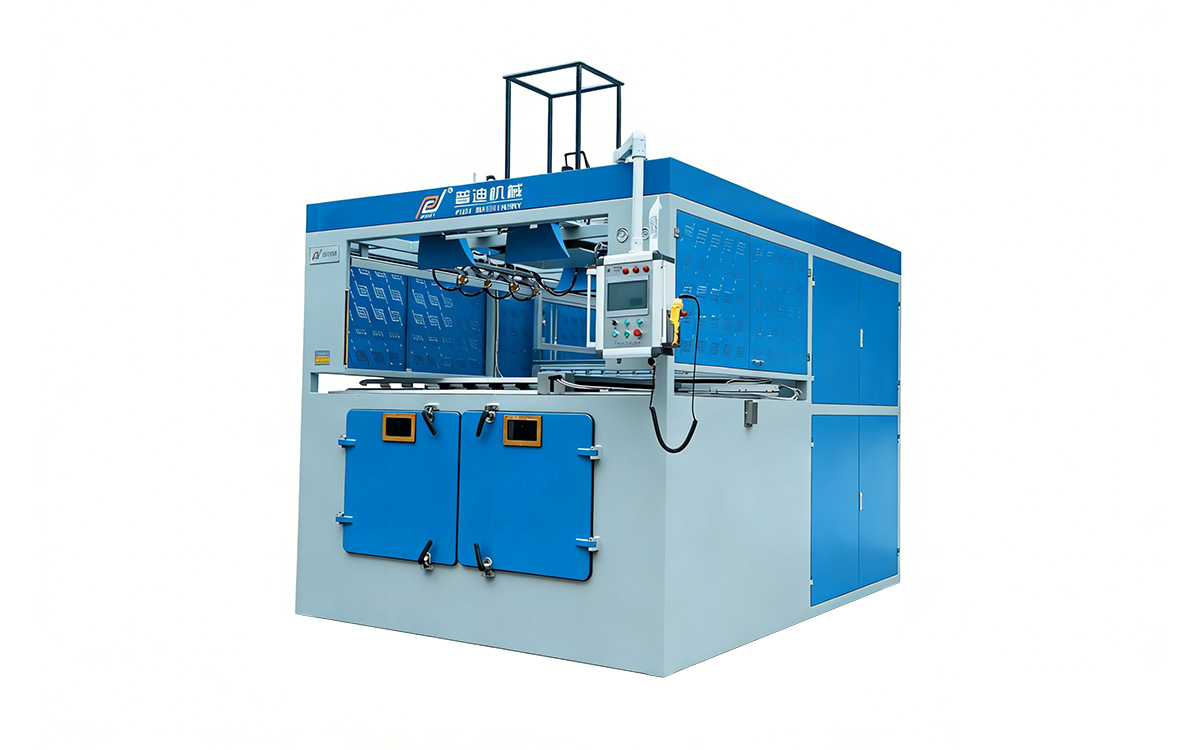

PDVF-Lite Thick Sheet Vacuum Forming Machine(lightweight version)-PDVF-Lite
PDVF-Lite Thick Sheet Vacuum Forming Machine(lightweight version)
Automotive parts (interior and exterior parts,new energy battery cover,car feet,tumover tray),medical equipment shell,chassis sel,adverising,bags, refrgerator liner,door panels,bathtubs and other plastic absorbing products.

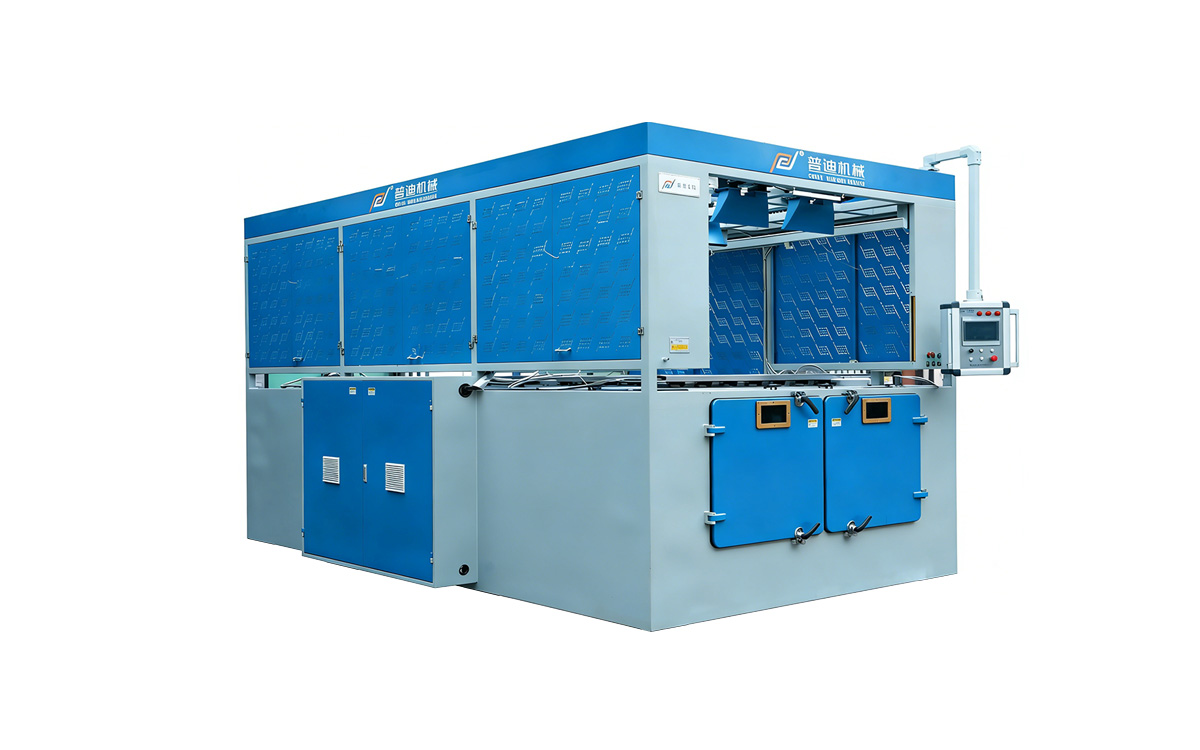

PDVF-DS Double-station Thick Sheet Vacuum Forming Machine-PDVF-DS
PDVF-DS Double-station Thick Sheet Vacuum Forming Machine
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.

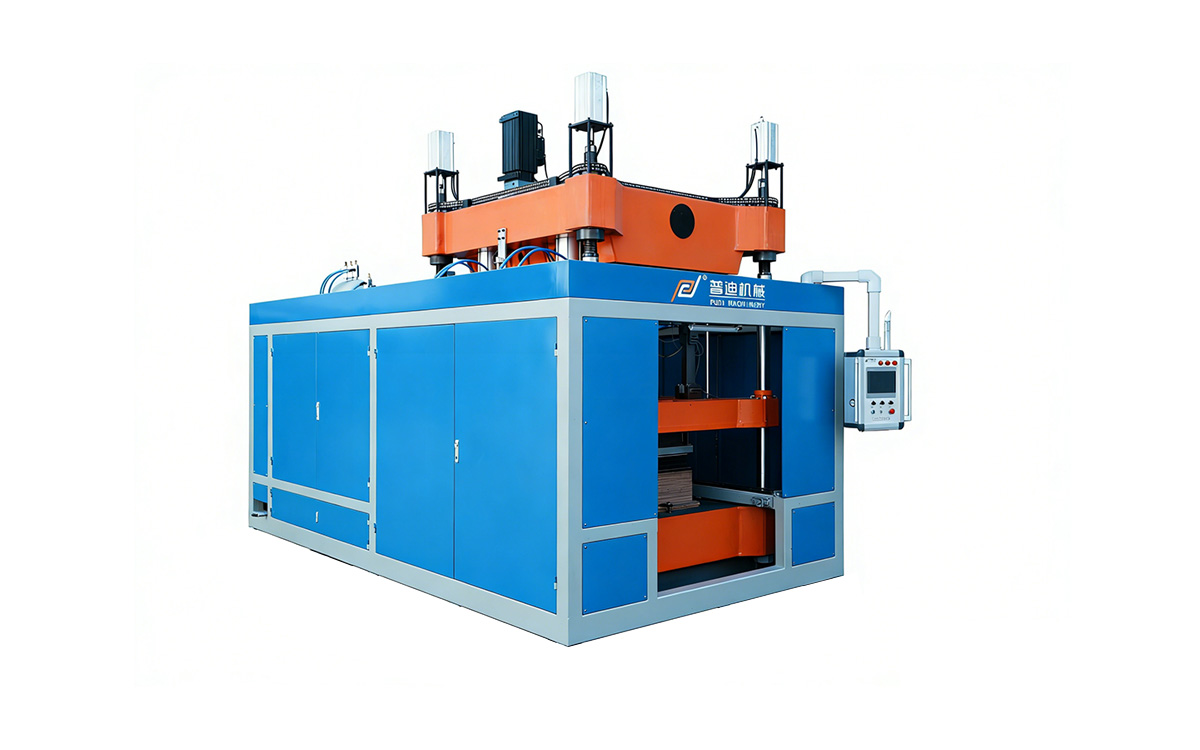

PDVF-HP Hot Press Vacuum Forming Machine-PDVF-HP
PDVF-HP Hot Press Vacuum Forming Machine
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
PDVF-HS Fully Automatic High Speed Thick Sheet Vacuum Forming Machine-PDVF-HS
PDVF-HS Fully Automatic High Speed Thick Sheet Vacuum Forming Machine
Automotive parts (interior and exterior parts, new energy battery cover, car feet, tumover tray), medical equipment shell, chassis seal, advertising, bags, refrigerator liner, door panels, bathtubs and other plastic absorbing products.
PDVF-ML Semi-Automatic Thick Sheet Vacuum Forming Machine -PDVF-ML
PDVF-ML Semi-Automatic Thick Sheet Vacuum Forming Machine
Automotive parts (interior and exterior parts,new energy battery cover,car feet,tumover tray),medical equipment shell,chassis sel,adverising,bags, refrgerator liner,door panels,bathtubs and other plastic absorbing products.

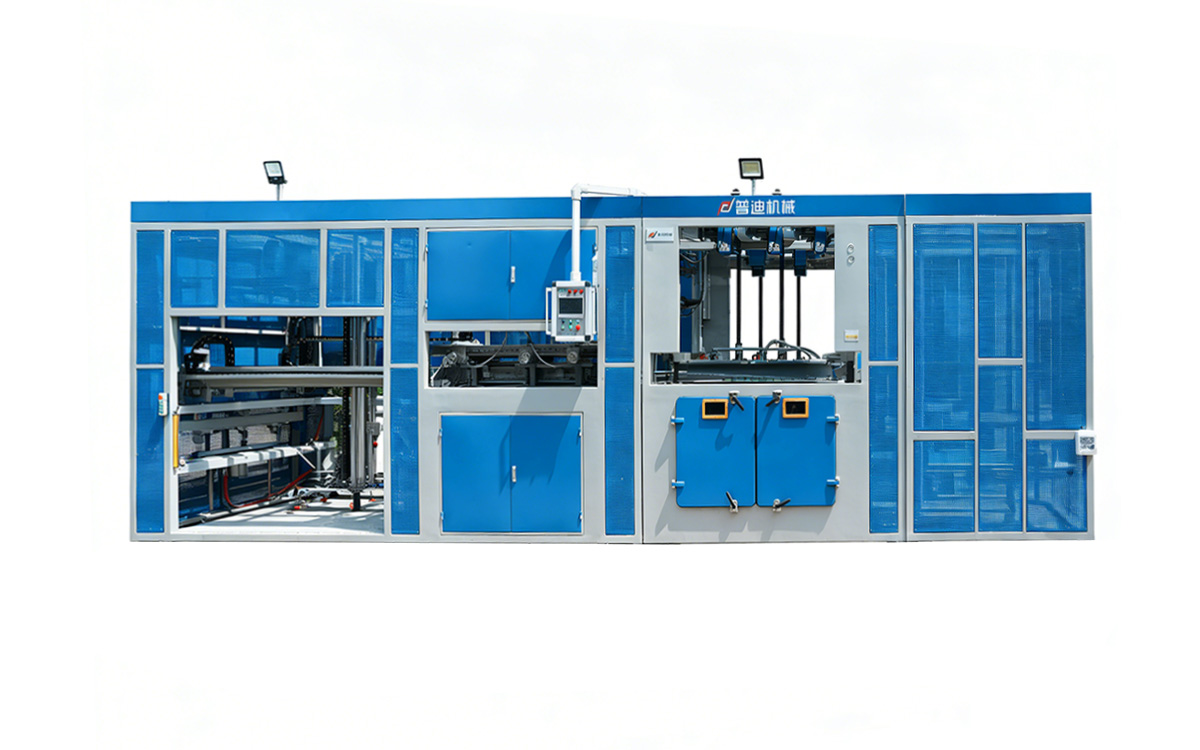

PDVF-RL Fully Automatic Robotic Hand Loading and Unloading Thick Sheet Vacuum Forming Machine-PDVF-RL
