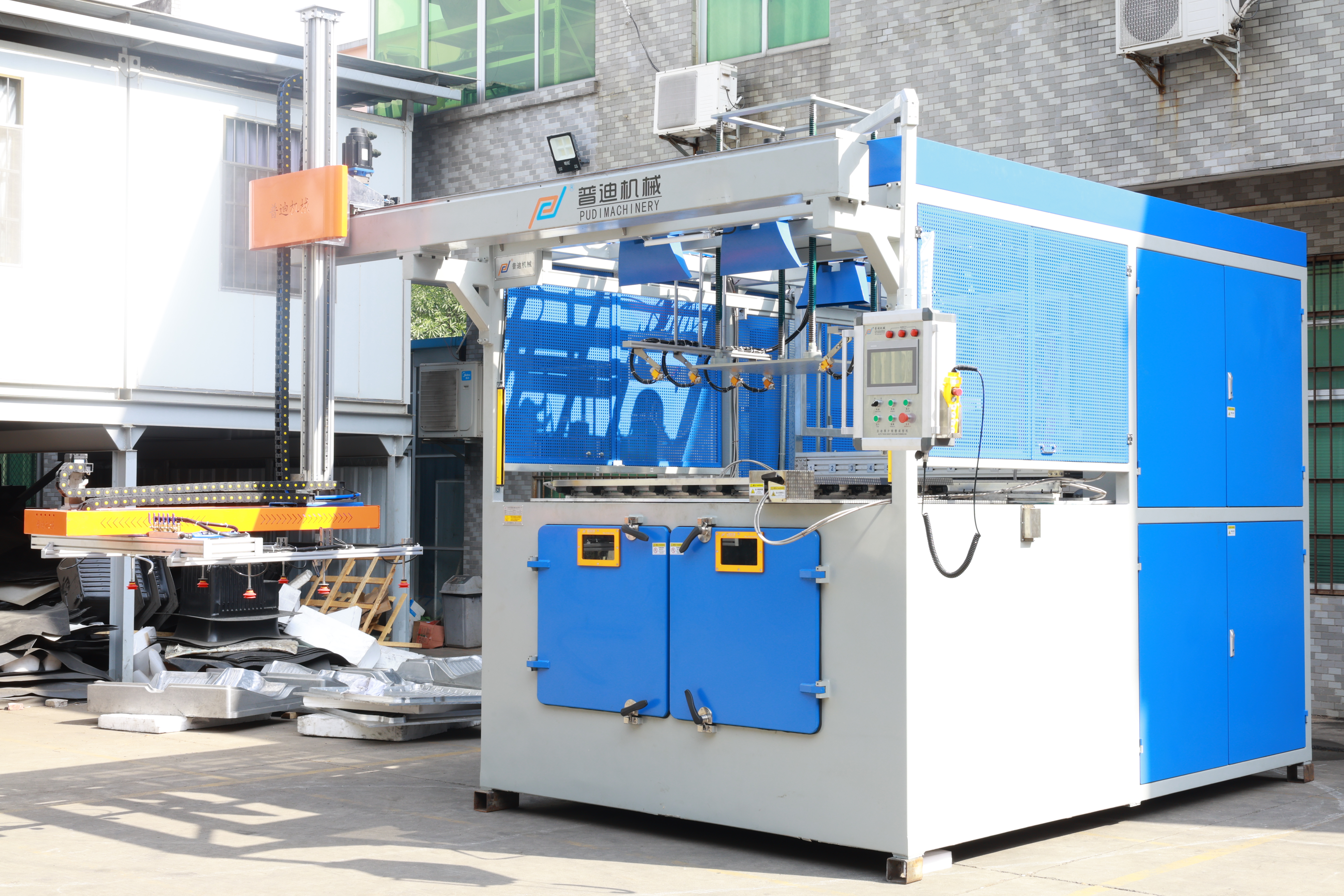

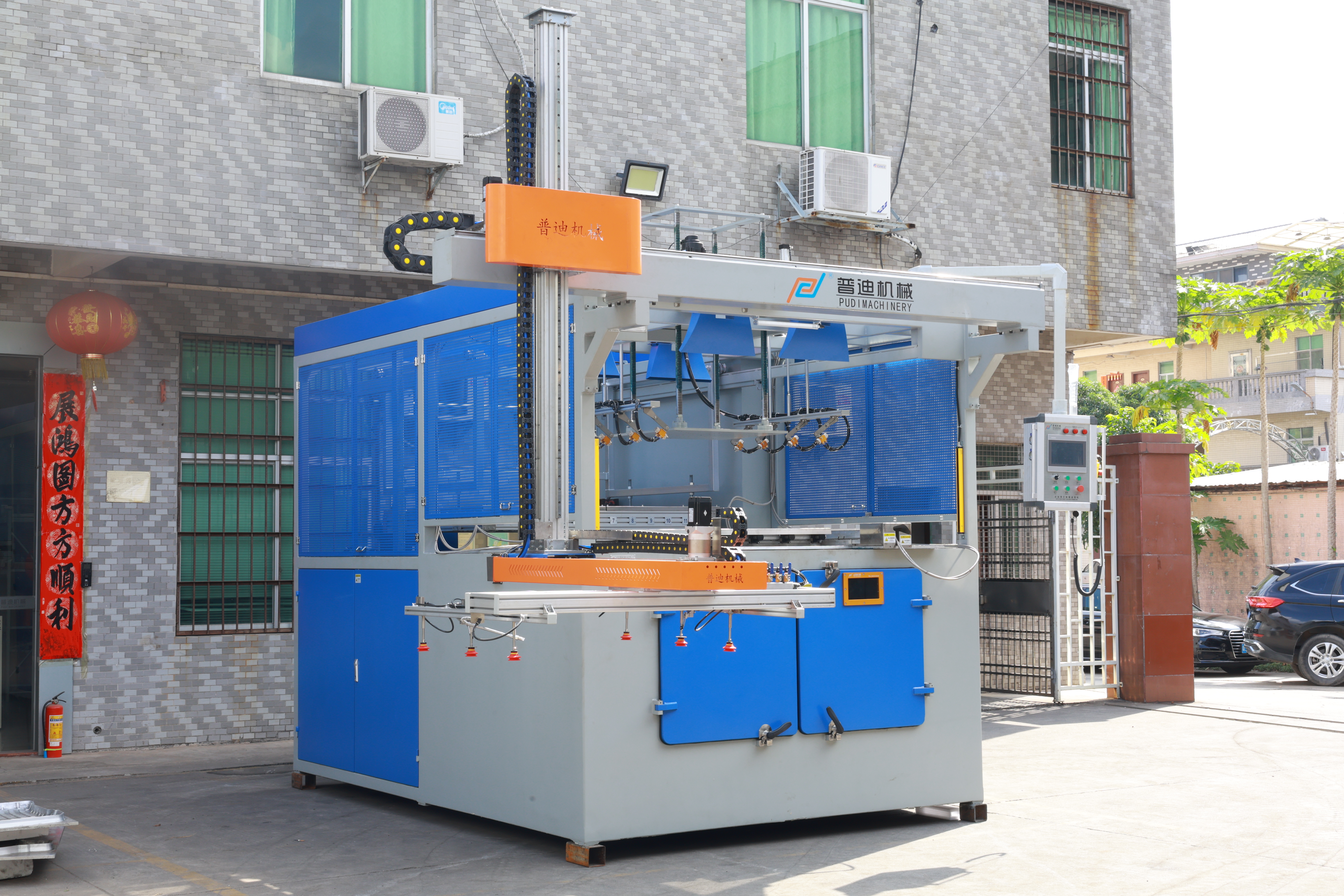

The PDVF-RL fully automatic vacuum forming machine uses a robotic arm to free up manual labour, enabling automatic loading and unloading while reducing space consumption. It can produce products for markets such as automobiles, bathtubs, refrigerators, and equipment housings.
Parameters.
Main technical parameters
| NO. | Items | parameters |
| 1 | Maximum Forming Area | (L)1600mm*(W)1300mm(Customisable) |
| 2 | Forming Depth | 500mm |
| 3 | Suitable Thickness | 1 - 10mm |
| 4 | Power Supply | Three-Phase Five-Wire 380V±15V,50Hz |
| 5 | Heating Power | Upper Stove:75KW, Lower Stove:75KW |
| 6 | Total Power | 155KW |
| 7 | Heater | Infrared heating tube |
| 8 | Mold Forming Mode | Concave and Convex Mold Forming |
| 9 | Electric Furnace Power | servo motor |
| 10 | Bottom Mold Set Power | Servo motor |
| 11 | Press Frame Drive | Air Cylinder |
| 12 | Cooling Method | Powerful fan and spray |
| 13 | Press frame and window structure | Motorised adjustment of the upper platen, manual adjustment of the window |
| 14 | Vacuum State | Support Large and Small Two Level Vacuum |
| 15 | PLC Control Temperature Data Storage | Parameters can store 100 groups |
| 16 | Anti-Drooping Ari Blowing System | Infrared Detector, Auto-Blowing up When Material Drooping. Heated Material Air Blowing Before Forming |
| 17 | Plastic Sheet Conveyor | Automatic loading and unloading |
| 18 | Product Demold | air pressure anti-blow demoulding |
| 19 |
Suitable Material |
ABS, HIPS, PP, PE, PVC, PC, PS, Acrylic and other thermoplastic sheet |
Main parts list
| NO | Item | Brand | Specification |
| 1 | Programmable Controllers | INOVANCE(China's No.1 Brand) | |
| 2 | touch screen | kunlun(China's No.1 Brand) | 10 inches |
| 3 | Lower die table | INOVANCE(China's No.1 Brand) | 11kw |
| 4 | Upper die table | INOVANCE(China's No.1 Brand) | 3kw |
| 5 | cylinder | AIrTAC(taiwan) | 100x700,4pcs |
| 6 | relay | OMRON(japan) | |
| 7 | temperature regulator | AOYI(china) | ZK7-1000-15 |
| 8 | vacuum pump | yuzhouxing(china) | 200m³/h |
| 9 | The electromagnetic valve | AIrTAC(taiwan) | Various models |
| 10 | heater(Halogen heaters) | china | 650w |
| 11 | AC contactor | schneider(France) | Various models |
| 12 | button | schneider(France) | Various models |
Accessory delivery list:
| NO. | Item | The number of |
| 1 | electric relay | 5 sets of |
| 2 | Temperature regulator | 5 set of |
| 3 | AC contactor | 5 pcs |
| 4 | Heater Elstein | 20pcs |
| 5 | Tracheal joint | 20pcs |
| 6 | Commonly used tools | 1 set of |
Product Description
PDVF-RL Automatic Thick Sheet Vacuum Forming Machine
PUDI MACHINERY
Dongguan Pudi Machinery Equipment Co., Ltd. is a professional blister machinery series equipment manufacturer focusing on R&D, design, manufacturing, sales and service. Pudi Company was established in 2005. After nearly 20 years of research, development and production of vacuum forming machine equipment, it has continuously pursued innovation. The professionals in our company are committed to providing customers with excellent solutions and helping them achieve innovation and efficient production in various fields.
Patents and certificates
Pudi Machinery Equipment Co., Ltd. has demonstrated its profound technical foundation and professional strength in the field of vacuum forming machines. The company has 20 patent copyrights and is in a leading position in the industry's innovation capabilities. Pudi Machinery Equipment Co., Ltd . has not only made remarkable achievements in technology research and development, but also obtained relevant professional certificates. These certifications further prove the high standards and quality assurance of the company's products.
Logistics and transportation
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology
2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .
3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre
4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic injection molding.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me.
