The disposable lunch box can produce various kinds of boxes, can meet market needs for large scale amount. The machine can utilize the material as much as possible, and it’s difficult to happen accidents to be damaged. It can work with high efficiency, and reduce your cost and labor to do large-scale management. You can easily control the machine to operate, and it can automatically do production once it receives command.
Parameters.

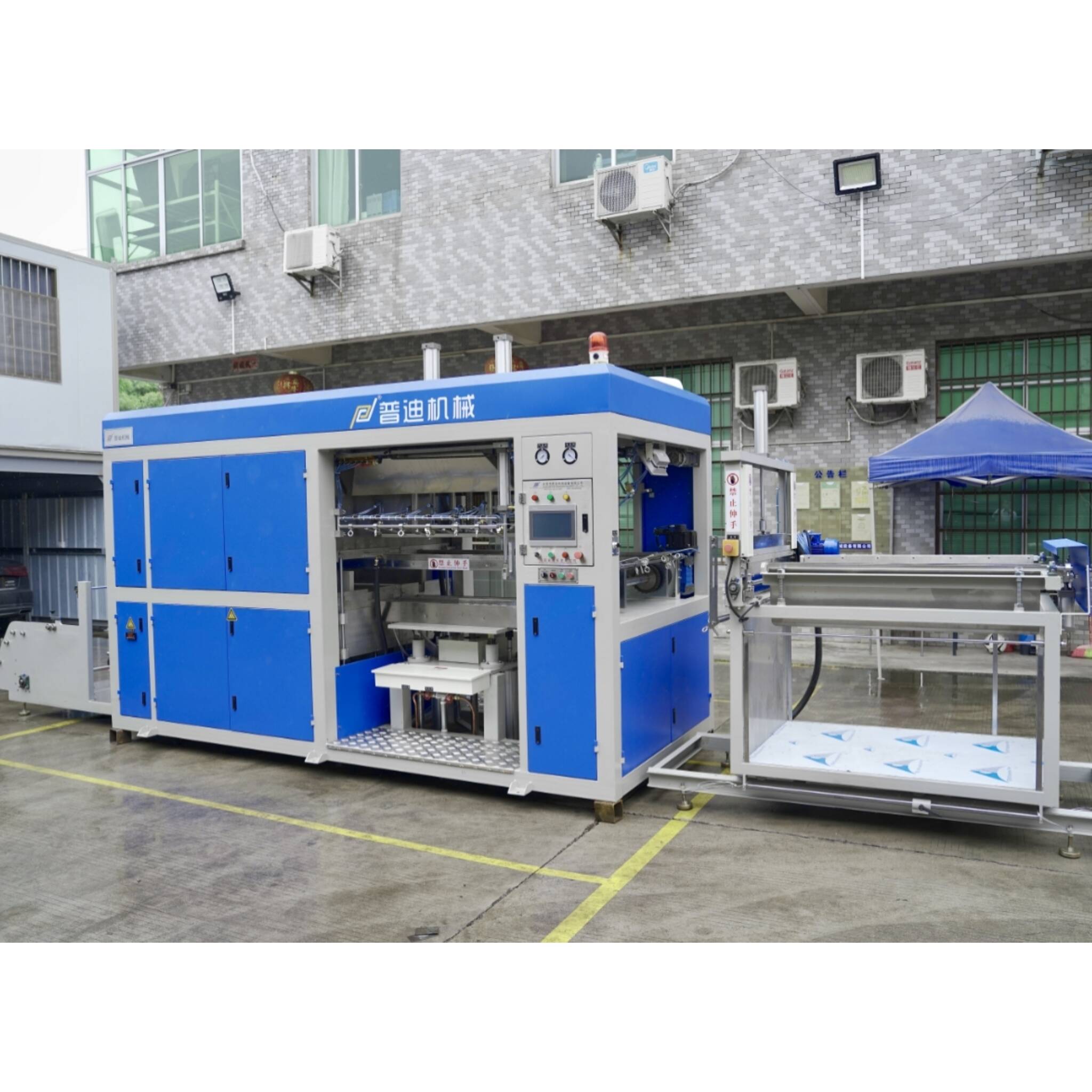

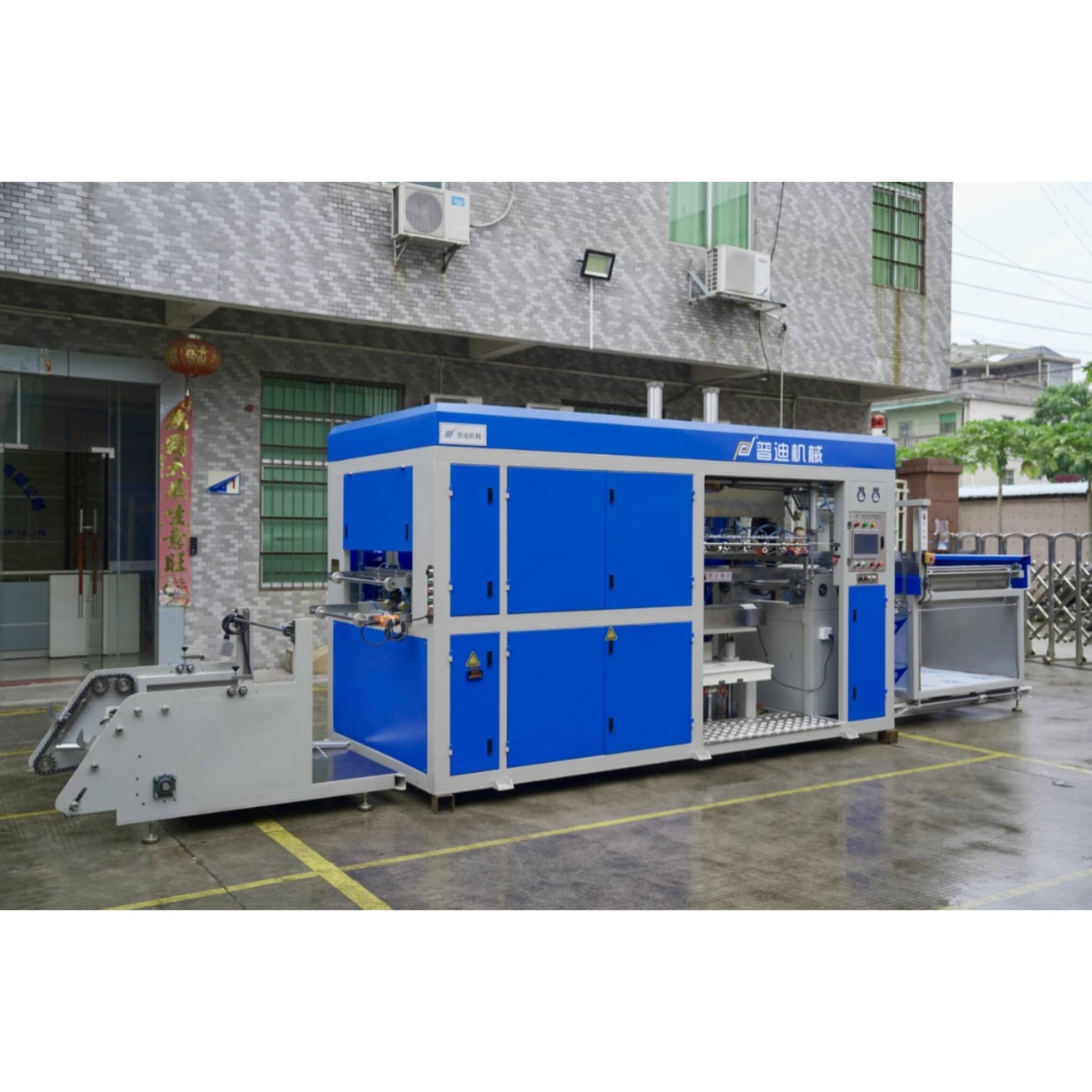

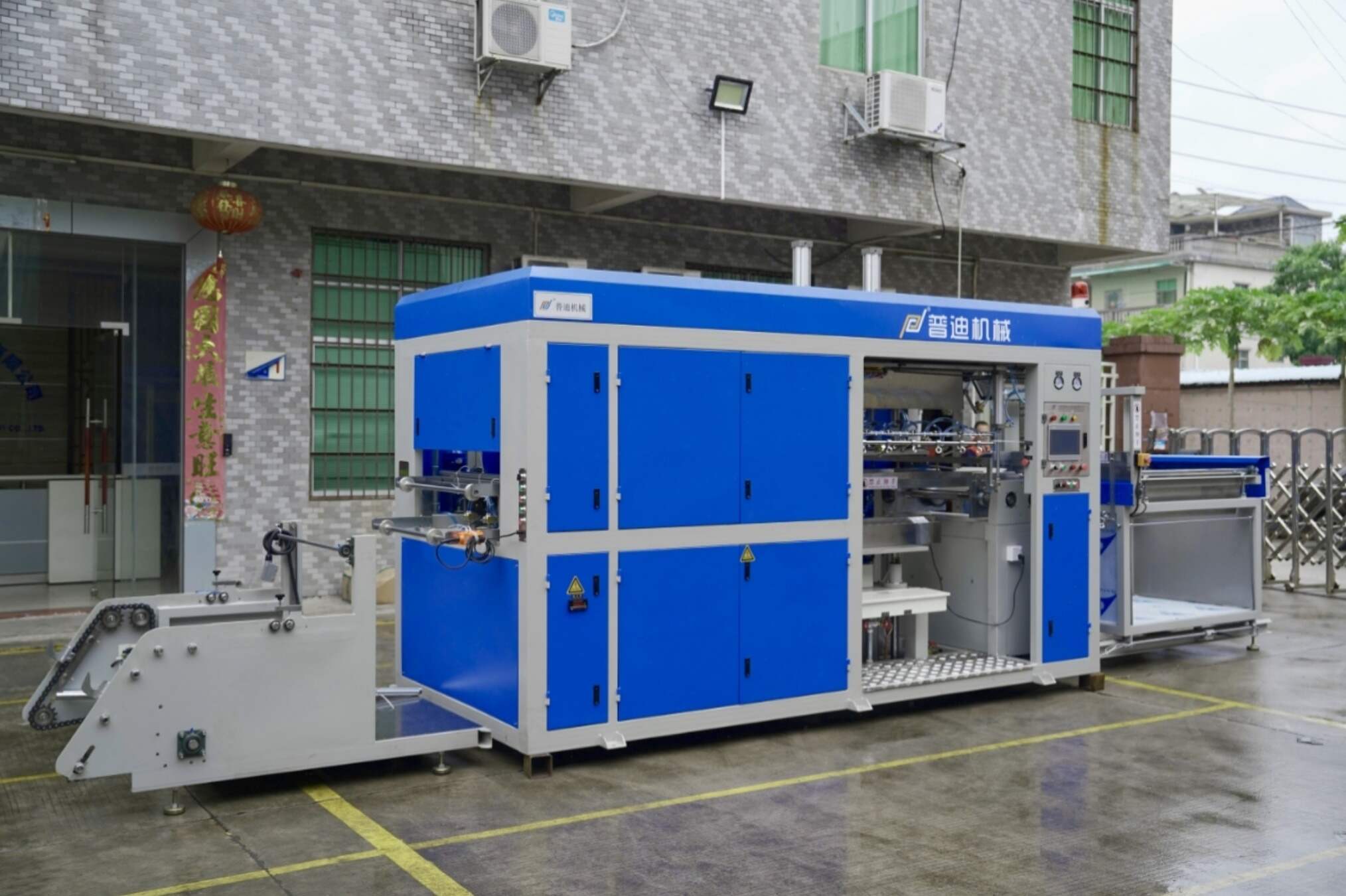

Parameters of PDVF-1207 Vacuum Forming Machine (Single Electric Furnace)
| NO. | Name | Specification |
| 1 | Molding method | Vacuum forming |
| 2 | Molding size | Forming length:500mm-1220mm Forming width:450mm-710mm |
| 3 | Molding depth | ≤150mm |
| 4 | Material and thickness | PVC,PET,PS,PP etc. 0.15mm-2.0mm |
| 5 | Loading system | Motor automatic loading, can load 150KG a roll of material. |
| 6 | Heating systems | Heat furnace using energy-saving 600W heating bricks 60 pieces |
| 7 | temperature control systems | "AOYI" temperature control module, one-to-one control, fast heating and fast adjustment. |
| 8 | pulling systems | 3KW Delta servo motor pull tab |
| 9 | Molding Systems | The upper and lower molds adopt Taiwan "Delta" 4.5KW servo motor |
| 10 | cooling systems | 12 meiji automatic spray guns ;four powerful double-head fans |
| 11 | control system | MCGS 10-inch color touch screen ; PLC:Taiwan "Delta" |
| 12 | Pneumatic Components | Water-oil separator, solenoid valve: Japan "CKD" Two way solenoid valves: Italian ceme |
| 13 | electronic component | Contactor: Japan Fuji Relay: Japan Izumi |
| 14 | guideway | Light flat water transport guide, hard chrome plated surface, motorized width adjustment |
| 15 | vacuum system | a 160m³ vacuum pump of brand Busch; Vacuum storage tank 0.4m³ |
| 16 | chiller | One 3HP of Taiwan Tengfei |
| 17 | memory function | Capable of storing production data for 100 groups of products |
| 18 | Silicone oil spraying system | 2 additional spray guns front and rear for silicone lubrication |
| 19 | Rack Body | 100mm*100mm square tube ,Furnace Retrofit Doors |
| 20 | Size of the whole machine | Length:7700mm Width:1600mm Height:2500mm |
| 21 | power supply | Power: Maximum 50KW Normal production 25KW-35KW Voltage: 380V 50HZ |
| 22 | air supply | 10HP air compressor, air pressure 6-8bar (self-contained) |
Product Description
PUDI MACHINERY
Dongguan Pudi Machinery Equipment Co., Ltd. is a professional blister machinery series equipment manufacturer focusing on R&D, design, manufacturing, sales and service. Pudi Company was established in 2005. After nearly 20 years of research, development and production of vacuum forming machine equipment, it has continuously pursued innovation. The professionals in our company are committed to providing customers with excellent solutions and helping them achieve innovation and efficient production in various fields.
Logistics Showcase
Certificates and Patents
Pudi Machinery Equipment Co., Ltd. has demonstrated its profound technical foundation and professional strength in the field of vacuum forming machines. The company has 20 patent copyrights and is in a leading position in the industry's innovation capabilities. Pudi Machinery Equipment Co., Ltd. has not only made remarkable achievements in technology research and development, but also obtained relevant professional certificates. These certifications further prove the high standards and quality assurance of the company's products.
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology
2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .
3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre
4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic vacuum forming.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me!
