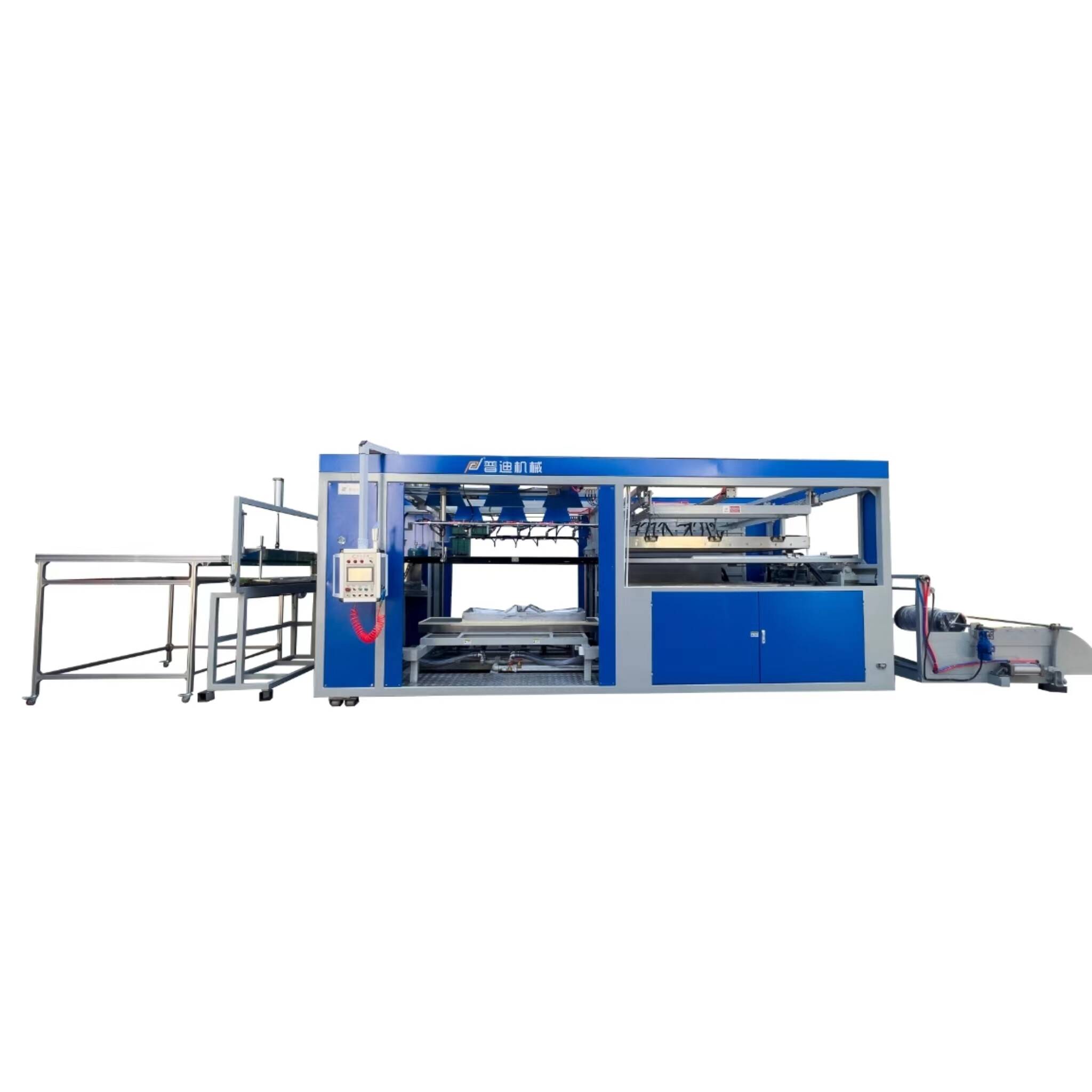

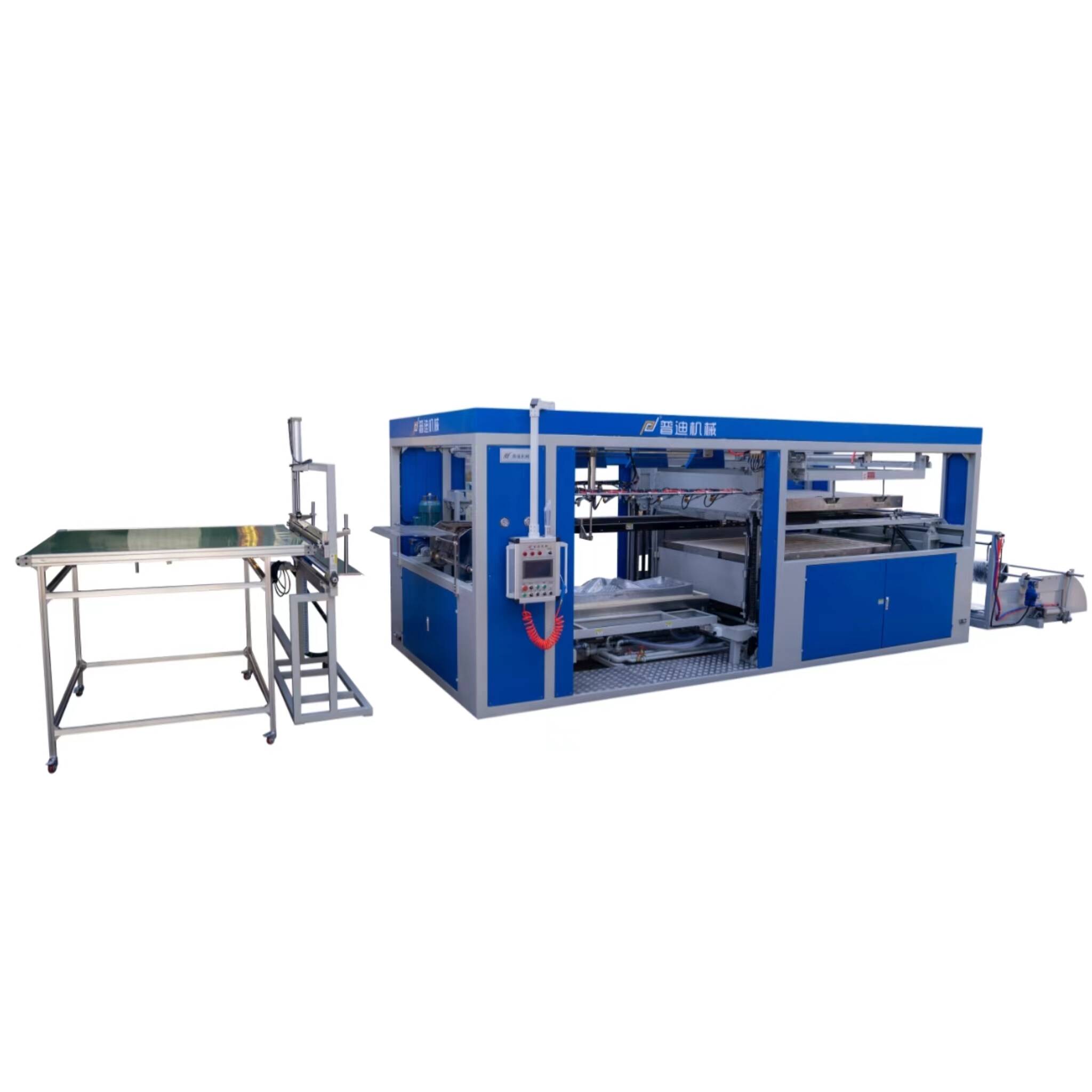

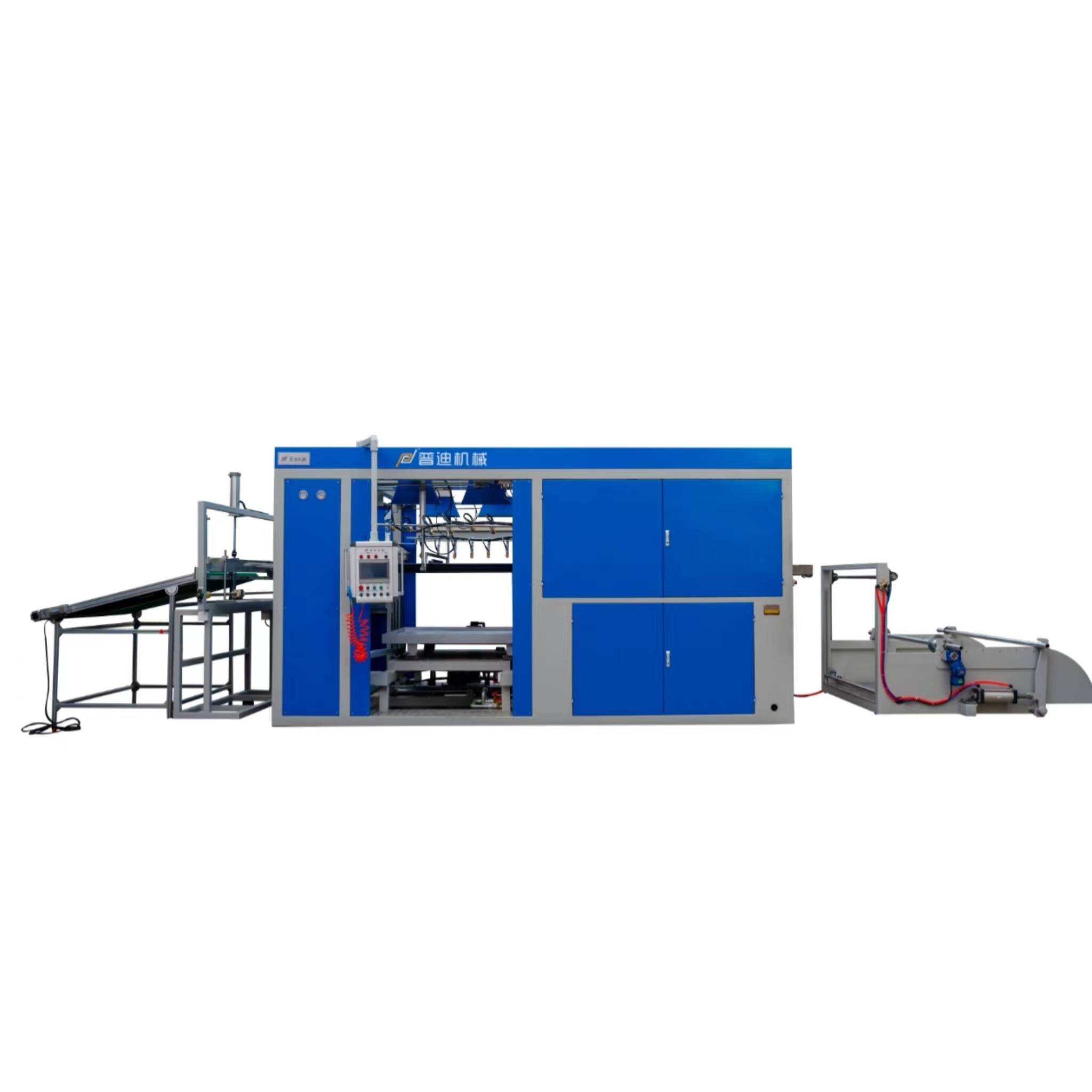

Vacuum Forming Machine for TPE Car Foot Mats/Tailgate Mats(Automatic)

1. No need for manual operation, automatic sheet feeding, automatic heating, automatic vacuum forming, automatic cutting.
2. All models can be stored, next production can be called directly;
3. Intelligent operating system, no need for professional personnel, simple training can operate the production by themselves;
4. It can meet the size of foot mats and tailgate mats of all car models, 1-5mm thickness of TPE rolls.

Inquiry Basket

Product Code：

PDVF-CMS

OEM：

Refuse

Sample：

Refuse

Port：

shenzhen

Payment：

T/T,L/C

Place of Origin：

China

Shipping：

Sea freight · Land freight

Supply Ability：

200 set per Year

Product Details

Warranty period

1 year

Customs Code

8477409000

Output

200PCS/year

Trademark

PUDI

Automation

Automatic

Color

Blue(Customisable)

Specifications

Customisable

Manufacturer Location

Dongguan

PDVF-ML Thick sheet Vacuum forming machine for producing automotive parts, refrigerator liners, bathtubs, and equipment housings

Automatic Vacuum Forming Machine for Thick sheet

Thick Sheet Vacuum Forming Machine (Lightweight Version)

PDVF-1207 High-speed servo vacuum forming machine for producing egg trays, seedling trays, and plastic packaging boxes

Name

Name can't be empty

* Email

Email can't be empty

Phone

Phone can't be empty

Company

Company can't be empty

* Message

Message can't be empty

Submit

NO	sports event	Equipment parameters and functional characteristics
1	Maximum moulding size	2000mm*1500mm
2	Forming height	500 mm
3	Material thickness	1-5mm
4	power supply	380V±15V，50Hz
5	power	（Normal use between 50-70 per cent）
6	Heating method	520 high-quality ceramic heaters
7	Machine external dimensions	L16000mmW4800mmL2800mm
8	weights	10T
9	production efficiency	According to the 3mm thickness of PET, 60S a mould
10	Heating Motion Method	When heating is required, the electric furnace is propelled by a cylinder into the heating zone to heat the material

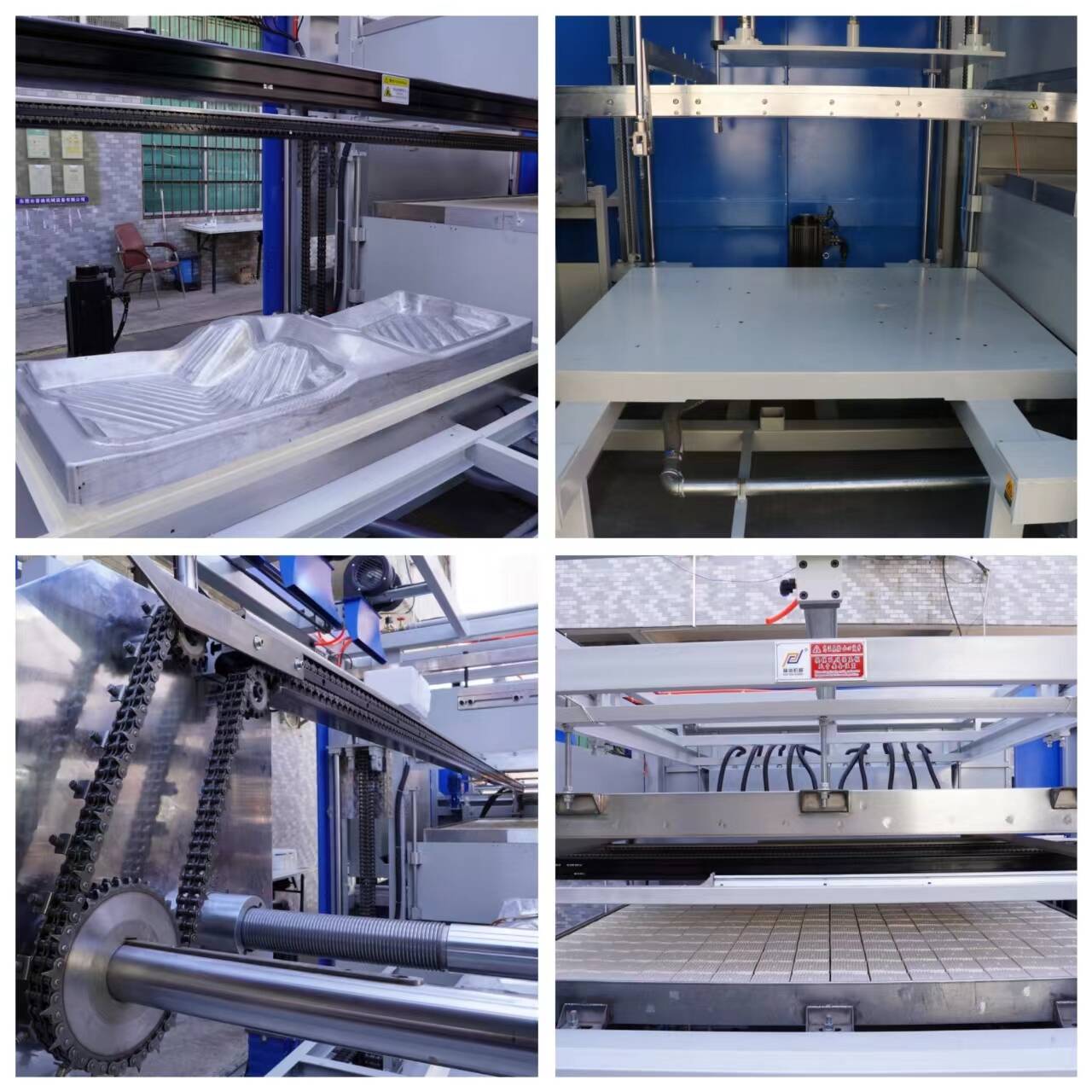

11	Mode of movement of the mould table	Driven by servo motor, the sprocket chain synchronous structure ensures smooth lifting and lowering of the mould table, and the speed can be adjusted arbitrarily according to the requirements, when replacing the moulds of different heights, you only need to adjust the required data in the touch screen, which is convenient and quick.

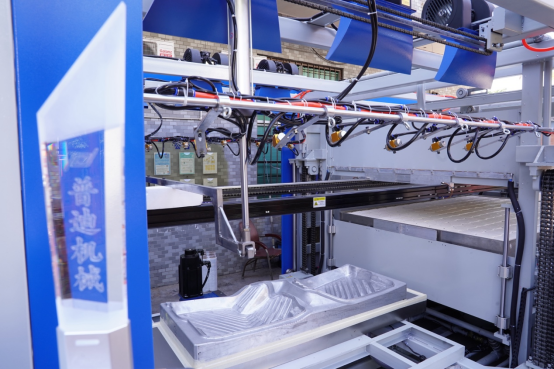

12	Product cooling method	Consisting of four powerful fans and multiple sprays, the product can be cooled more quickly, greatly improving production efficiency.
13	vacuum system	Equipped with a 200-vacuum pump and a vacuum tank to ensure rapid moulding of the product.
14	Demoulding systems	Before the product is taken out of the mould, it is necessary to release the vacuum and blow back the gas to ensure that the product is not deformed after the moulding is completed.
15	Cutting Systems	After pressing the product, it is driven by motor, linear guide, screw and disc blade for cutting, after cutting, the product will be passed out by conveyor belt, and can be taken down manually, with adjustable speed and accurate positioning.
16	Film Pulling System	The track beam is made of iron with one-piece moulding process, which ensures that the chain and the track will not be deformed after years of use, and the pulling piece is driven by a high-power servo motor.
