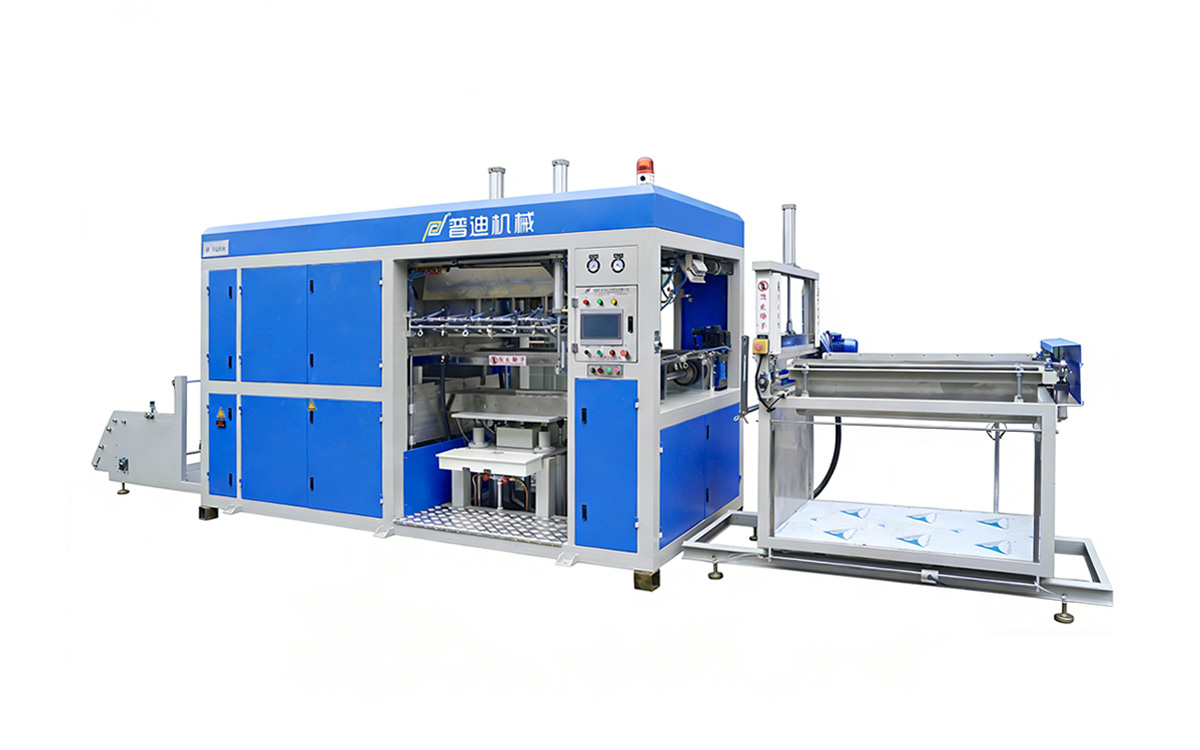

PDVF-mini Small Vacuum Forming Machine
Small Vacuum Forming Machinecan accurately form various plastic products such as lunch boxes, plastic packaging, and seed trays, adapting to the production needs of multiple scenarios and efficiently creating high-quality plastic products.
Small Vacuum Forming Machinecan accurately form various plastic products such as lunch boxes, plastic packaging, and seed trays, adapting to the production needs of multiple scenarios and efficiently creating high-quality plastic products.
Previous: No more data
Product Details
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L*W*H) |
Total power |
Dimension (L*W*H)
|
Production Speed |
|
PDVF-mini0605 |
610*560*200mm |
15kw (Actual use30%-70%） |
2000*1200*2000mm |
20S-100S/Pc (0.2~1.5mm) |
|
PDVF-mini0806 |
800*600*200mm |
22kw (Actual use30%-70%） |
2200*1500*2000mm |
20S-100S/Pc (0.2~1.5mm) |
|
PDVF-mini1008 |
1000*800*200mm |
30kw (Actual use30%-70%） |
2500*1800*2000mm |
20S-100S/Pc (0.2~1.5mm) |

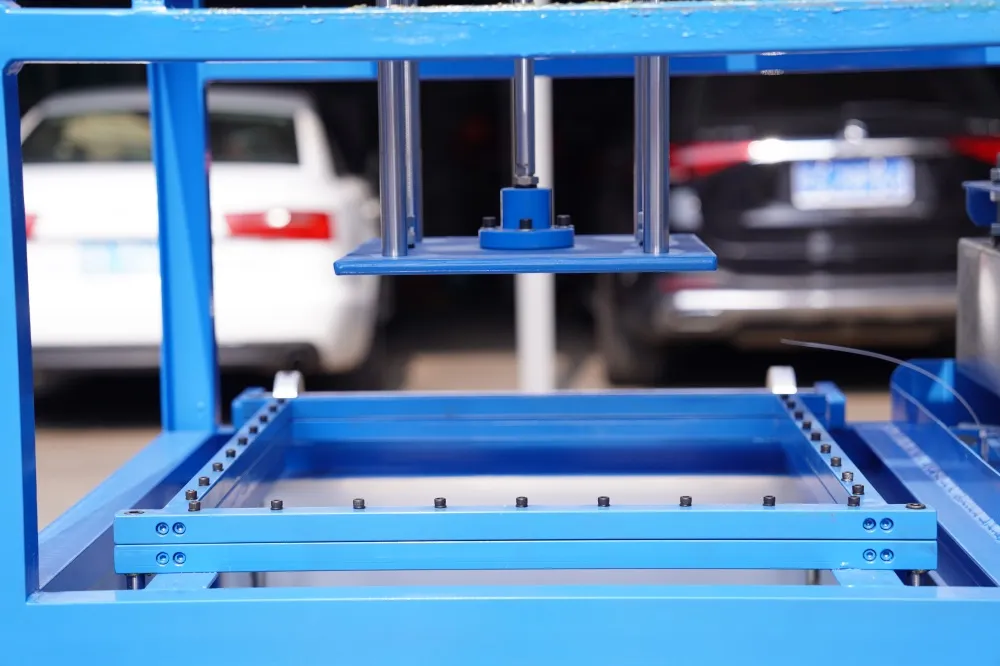

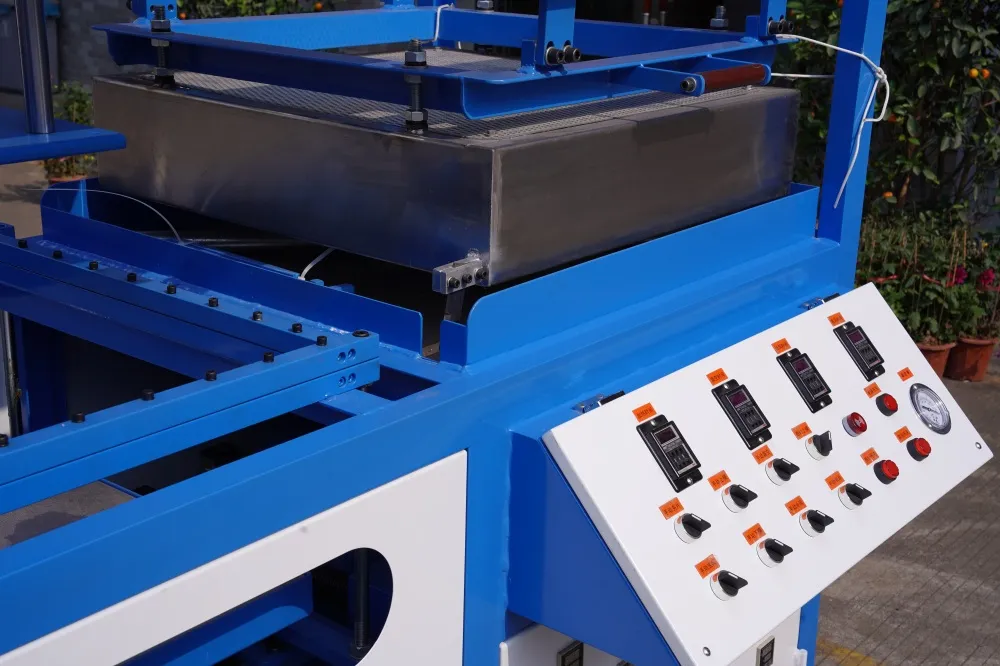

▎MACHINE DETAIL IMAGES
 |
 |
 |
▎FUNCTIONAL FEATURES
|
Function |
This equipment is designed for small-batch, diverse product manufacturing, featuring flexible mould changeovers and an intuitive, barrier-free operating system. It offers the choice between manual or automated loading and unloading. |
|
Available Products |
Disposable lunch boxes,electronic trays,food packaging,toy packaging,medical packaging and other products |
|
Applicable Materials |
ABS, PS, PE, PC, PP, PVC, PET, PMMA, composite materials, alloy materials, and other vacuum-formed sheets. |
|
Molding Thickness |
0.2-mm |
|
Cooling system |
Powerful fans |
|
Mold release system |
blowback gas |
|

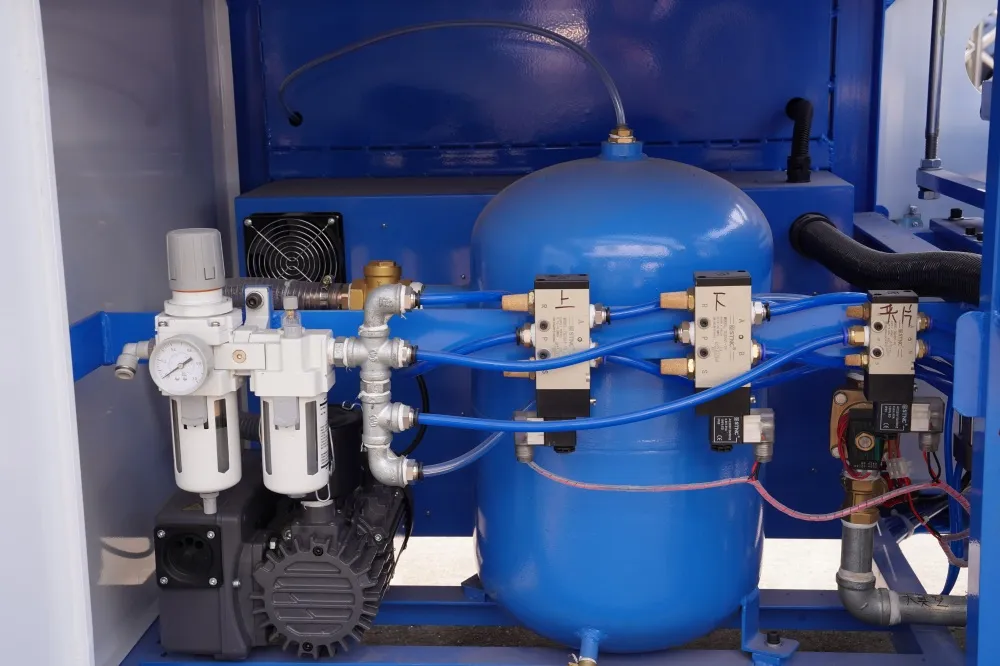

Vacuum system |
Smallvacuum pump+vacuum tank |
|
Operation |
Manual lading andunloading/Automaic loadng andunboading |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |

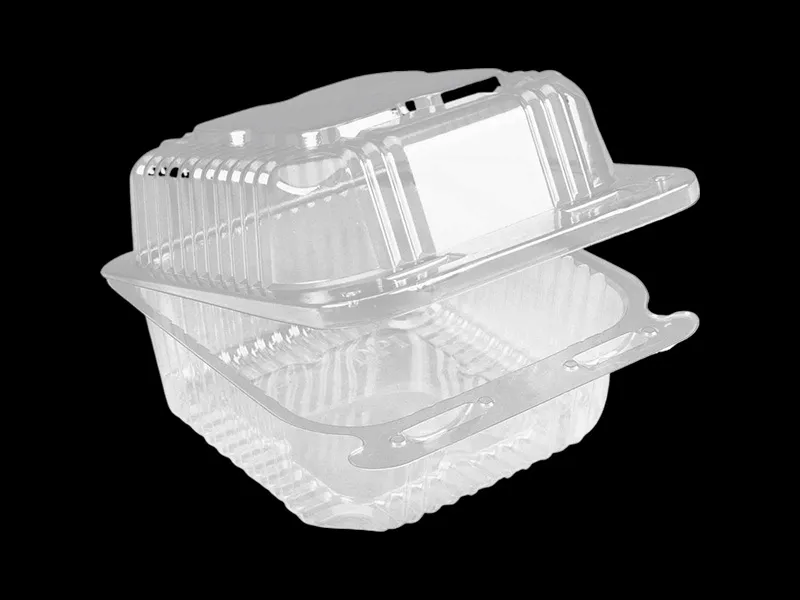

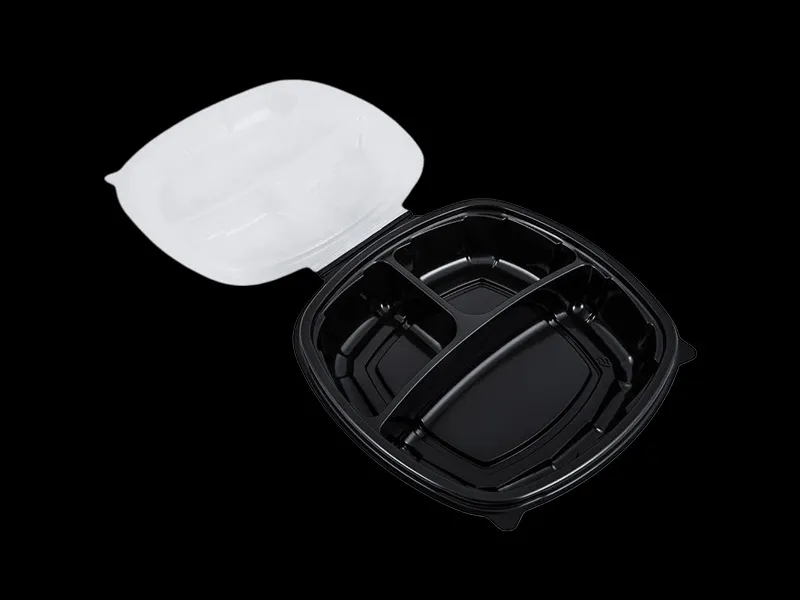

▎AVAILABLE PRODUCTS
Small Vacuum Forming Machinecan accurately form various plastic products such as lunch boxes, plastic packaging, and seed trays, adapting to the production needs of multiple scenarios and efficiently creating high-quality plastic products.
▎APPLICATION AREAS

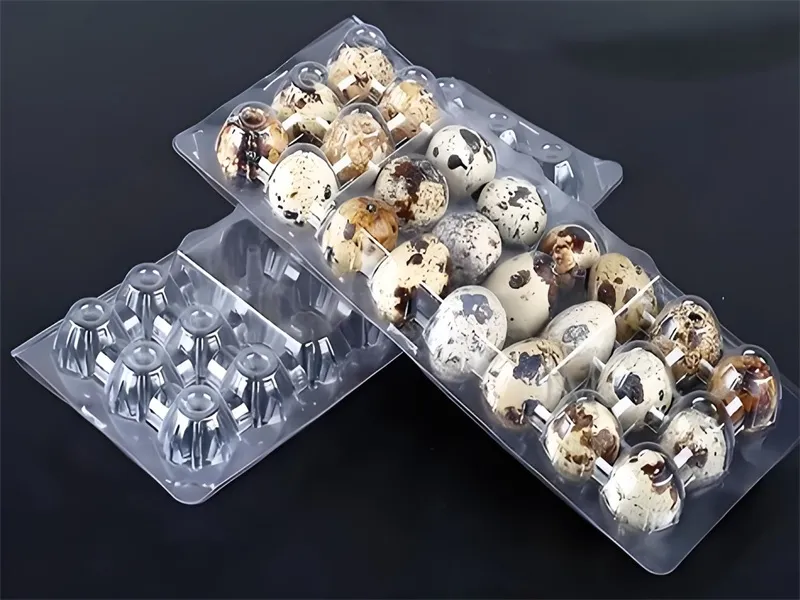

Food Packaging Industry: Used for producing disposable food packaging such as food trays, egg cartons, cup lids, fruit boxes, and cake boxes.
Electronics Packaging: Employed in manufacturing vacuum-formed packaging for electronic components.
Industrial and Logistics Packaging: Utilised for producing industrial parts pallets, logistics turnover pallets, and shock-resistant packaging pallets.
Agricultural Seedling Products: Employed in manufacturing agricultural supplies including seedling trays and planting trays.
 |
 |
 |
 |
 |
 |
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
 |
 |
 |
 |
 |
 |
▎BASIC PARAMETERS
All Pudi Machinery vacuum forming machines can be customised to meet customer requirements.
|
Model |
Molding size (L*W*H) |
Total power |
Dimension (L*W*H)
|
Production Speed |
|
PDVF-mini0605 |
610*560*200mm |
15kw (Actual use30%-70%） |
2000*1200*2000mm |
20S-100S/Pc (0.2~1.5mm) |
|
PDVF-mini0806 |
800*600*200mm |
22kw (Actual use30%-70%） |
2200*1500*2000mm |
20S-100S/Pc (0.2~1.5mm) |
|
PDVF-mini1008 |
1000*800*200mm |
30kw (Actual use30%-70%） |
2500*1800*2000mm |
20S-100S/Pc (0.2~1.5mm) |
▎MACHINE DETAIL IMAGES
|
|
|
▎FUNCTIONAL FEATURES
|
Function |
This equipment is designed for small-batch, diverse product manufacturing, featuring flexible mould changeovers and an intuitive, barrier-free operating system. It offers the choice between manual or automated loading and unloading. |
|
Available Products |
Disposable lunch boxes,electronic trays,food packaging,toy packaging,medical packaging and other products |
|
Applicable Materials |
ABS, PS, PE, PC, PP, PVC, PET, PMMA, composite materials, alloy materials, and other vacuum-formed sheets. |
|
Molding Thickness |
0.2-mm |
|
Cooling system |
Powerful fans |
|
Mold release system |
blowback gas |
|
Vacuum system |
Smallvacuum pump+vacuum tank |
|
Operation |
Manual lading andunloading/Automaic loadng andunboading |
▎MAIN COMPONENTS
Over 90% of the electrical components in this equipment are sourced from internationally renowned brands.
|
NO |
Name |
Brand |
|
1 |
PLC/HMI |
Siemens |
|
2 |
Intermediate Relay |
Omron (Imported) |
|
3 |
Temperature Control Regulator |
AOYI Digital Regulator |
|
4 |
Vacuum Pump |
Busch (Germany) |
|
5 |
Solenoid Valve |
SMC (Imported) |
|
6 |
Contactor |
Schneider (Imported) |
|
7 |
Circuit Breaker |
Schneider (Imported) |
|
8 |
Proximity Switch |
Omron (Imported) |
|
9 |
Cylinder |
SMC (Imported) |
|
10 |
Push Button Switch |
Schneider (Imported) |
|
11 |
Electric Furnace Motor |
Siemens |
|
12 |
Driver |
Siemens |
|
13 |
Upper Mold Servo Motor |
Siemens |
|
14 |
Lower Mold Servo Motor |
Siemens |
|
15 |
Manipulator |
Siemens |
|
16 |
Bearing |
C&U Bearing |
|
17 |
Heating Tube |
Pudi Self-developed |
|
19 |
Air Switch |
Siemens |
▎AVAILABLE PRODUCTS
Small Vacuum Forming Machinecan accurately form various plastic products such as lunch boxes, plastic packaging, and seed trays, adapting to the production needs of multiple scenarios and efficiently creating high-quality plastic products.
▎APPLICATION AREAS
Food Packaging Industry: Used for producing disposable food packaging such as food trays, egg cartons, cup lids, fruit boxes, and cake boxes.
Electronics Packaging: Employed in manufacturing vacuum-formed packaging for electronic components.
Industrial and Logistics Packaging: Utilised for producing industrial parts pallets, logistics turnover pallets, and shock-resistant packaging pallets.
Agricultural Seedling Products: Employed in manufacturing agricultural supplies including seedling trays and planting trays.
|
|
|
|
|
|
▎OUR EXPERTISE, YOUR ADVANTAGE
1. Professional Technical Team:20 years of R&D and production experience, with rich experience in vacuum moulding technology
2. Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
3. Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre
4. Worry-free after-sales service: Integration of installation, commissioning and training services
|
|
|
|
|
|
