1.It is made of welded or spliced steel profiles, and the whole steel frame has enough strength and rigidity. All metal surfaces are treated with antirust treatment and bottom sprayed with antirust paint; common and standardized parts are used in the structure, which is convenient for maintenance and replacement of all parts in the later stage
2.The whole machine is divided into manual/automatic mode, all setup operations are realized on the touch screen; when the operator places the material well, press the automatic startup equipment to complete the whole process of molding technology once, manual is mainly used for changing mold or starting sample control.

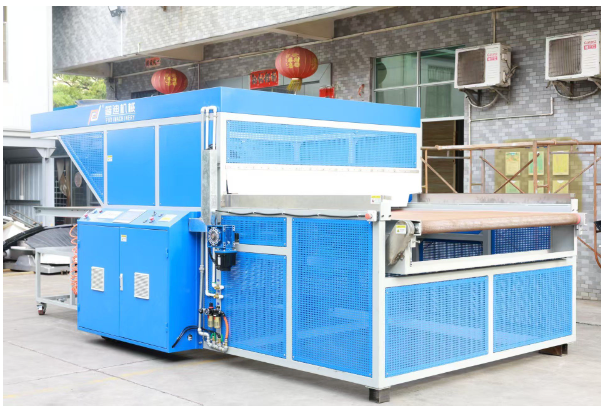

3.PDVF-CMS type foot cushion tail cushion special thick sheet servo vacuum molding machine, using PLC control, all functions can be operated in the touch screen. Adopting Chinese and English interface, the machine has buttons for operation and setting and modification of all process parameters, which makes the equipment easy to operate and maintain.
Parameters.
| Item Order | Technical Specification | Technical Parameters |
| 1 | Molding area |
2000mm*1500mm(Customisable) |
| 2 | Molding thickness | 1-5mm |
| 3 | Forming height | 500mm |
| 4 | Power | 60kw(subject to actual, normal use of power: (50% -70%) |
| 5 | Heating method | High-quality ceramic heaters |
| 6 | Machine external dimensions | L8000*W3000*H2200mm |
| 7 | Weights | Around 1 t |
| 8 | Production efficiency | According to the calculation of 3mm thickness PET, about 60s a mould |
| 9 | Sheet conveyor | Full servo conveying system ,can be adjusted in and out of the speed ,according to different sizes of products for arbitrary adjustment |
| 10 | Mold table device | Driven by cylinder,it can be adjust the height at will to meet the different heights of the foot mat and tailgate mat moulds,improve the quality of the product drawings to reduce the workload of manual labour |
| 11 | Product cooling method | Composed of powerful fans and sprays,it allows products to be cooled more quickly and greatly improves production efficiency |
| 12 | Vacuum System | Equipped with a 100-vacuum pump and a vacuum tank to ensure fast product product moulding |
Product Description

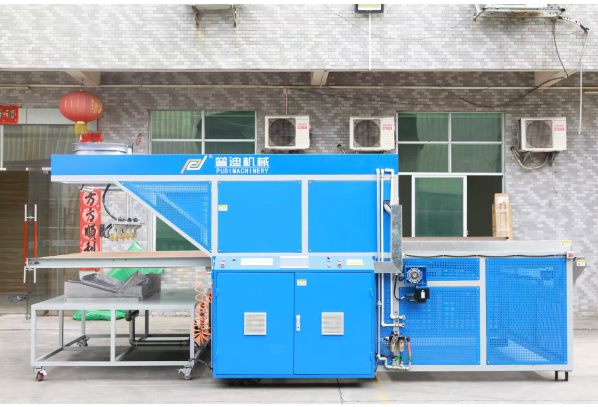

Semi vacuum forming machine

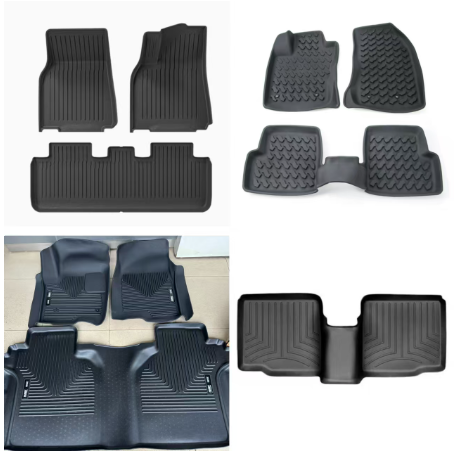

Use for below products:
Use: This equipment is mainly used for producing automobile foot mats and tail mats
PUDI MACHINERY
Dongguan Pudi Machinery Equipment Co., Ltd. is a professional blister machinery series equipment manufacturer focusing on R&D, design, manufacturing, sales and service. Pudi Company was established in 2005. After nearly 20 years of research, development and production of vacuum forming machine equipment, it has continuously pursued innovation. The professionals in our company are committed to providing customers with excellent solutions and helping them achieve innovation and efficient production in various fields.
Patent and Certificate protection
Pudi Machinery Equipment Co., Ltd. has demonstrated its profound technical foundation and professional strength in the field of vacuum forming machines. The company has 20 patent copyrights and is in a leading position in the industry's innovation capabilities. Pudi Machinery Equipment Co., Ltd . has not only made remarkable achievements in technology research and development, but also obtained relevant professional certificates. These certifications further prove the high standards and quality assurance of the company's products.

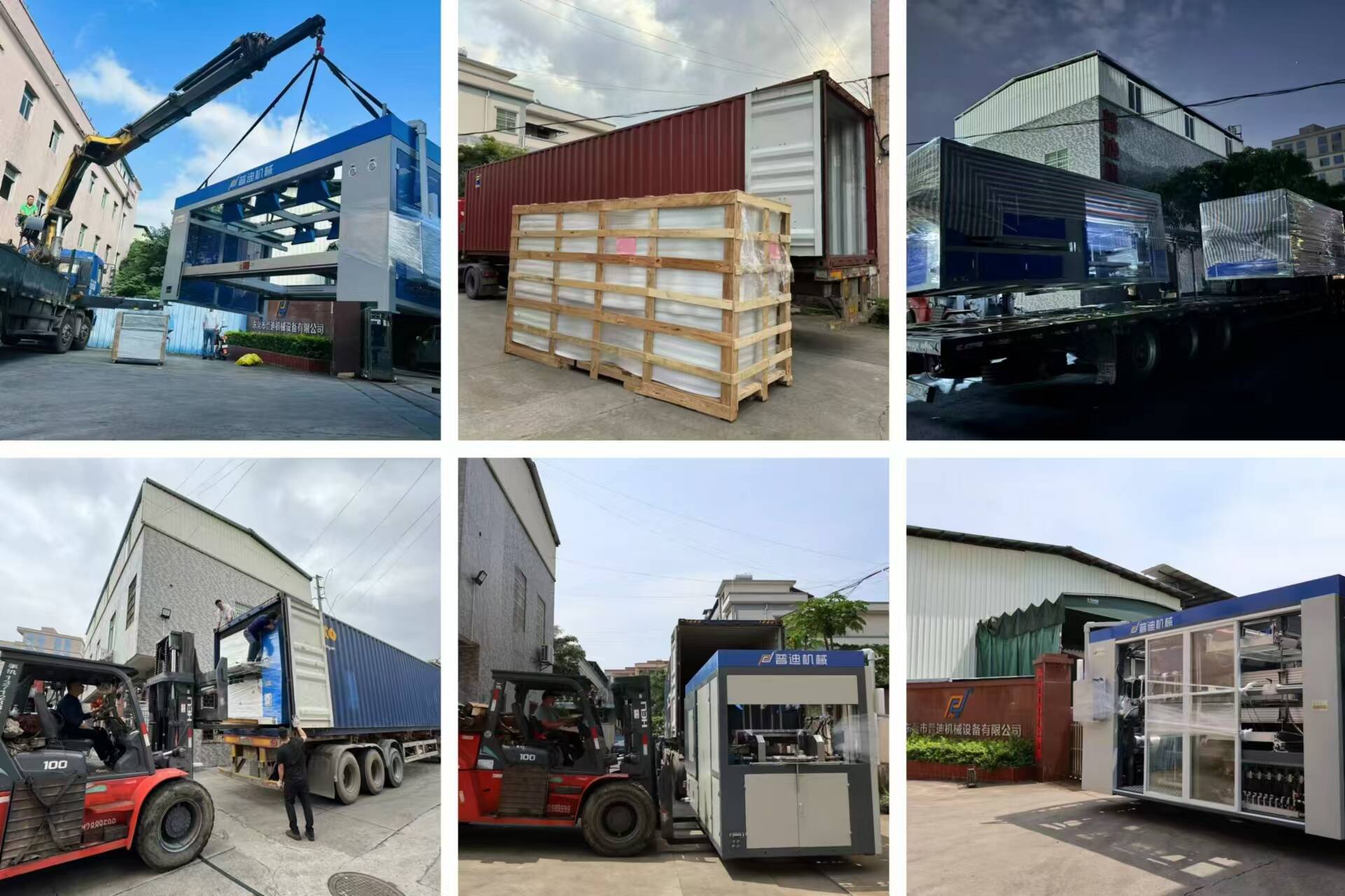

Transport and Logistics support
OUR EXPERTISE ,YOUR ADVANTANGE
1.Professional Technical Team :20 years of R&D and production experience,with rich experience in vacuum moulding technology
2.Non-standard customised service : Provide one-stop service to provide customers with excellent complete vacuum forming solutions .
3.Quality assurance and reliability : All mechanical parts are produced independently by CNC machining centre
4.Worry free after-sales service : Integration of installation ,commissioning and training services
Pudi service standard
Pre-sales service
1. According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
2. Provide the amount of water, electricity and gas needed for the production workshop.
3. Provide reasonable workshop planning program.
4.Provide the mold manufacturers and material manufacturers for plastic injection molding.
The sale of services
1. In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
2. After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
3. Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales service
1. One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
2. Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
3. For all the customers who have purchased Pudi's equipment, we will make after-sale visits from time to time.
We can customise any model, if you are interested in our machines, please feel free to contact me.
